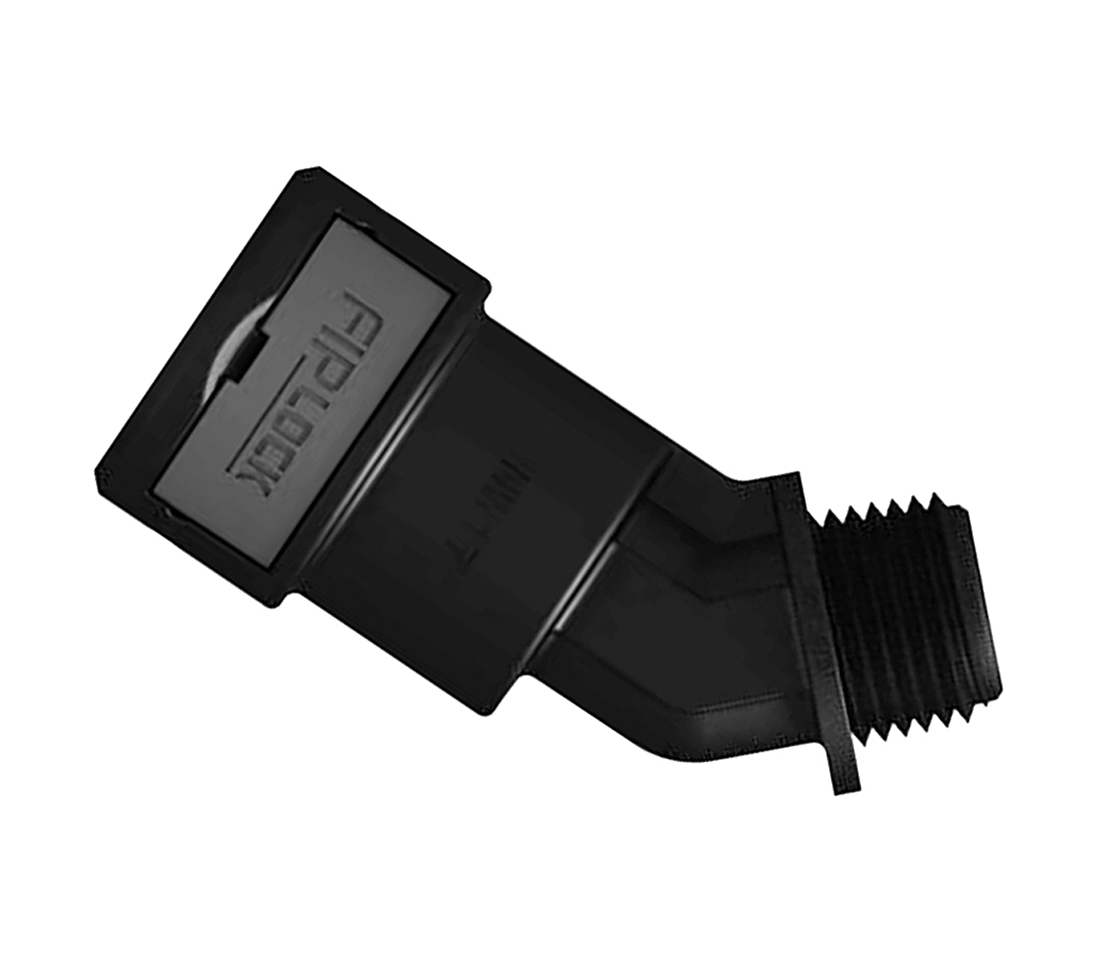

Fitting 45° elbow, NPT, plastic thread
The one-piece 45°-elbow cable protection conduit fitting AAPA with a NPT thread, made of specially modified, free-halogen polyamide 6. Due to its excellent UV-resistance, AAPA-NPT is also perfectly suited for outdoor ins-tallations. With the brand new 360° interlocking system and an inside conduit seal, AAPA-NPT complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AAPA-NPT
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
NPT
Thread
NPT
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
45°-elbow
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
12 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 880000062Nominal diameter
mm 28.5Thread connection size OtherLowest inner diameter hose
mm 13.1Max. outer diameter hose
mmColour BlackThread length
mm 13.5Total length
mm 62.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000063Nominal diameter
mm 28.5Thread connection size OtherLowest inner diameter hose
mm 13.1Max. outer diameter hose
mmColour GreyThread length
mm 13.5Total length
mm 62.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000064Nominal diameter
mm 34Thread connection size OtherLowest inner diameter hose
mm 13Max. outer diameter hose
mmColour BlackThread length
mm 13.5Total length
mm 75.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000065Nominal diameter
mm 34Thread connection size OtherLowest inner diameter hose
mm 13Max. outer diameter hose
mmColour GreyThread length
mm 13.5Total length
mm 75.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000066Nominal diameter
mm 41.7Thread connection size OtherLowest inner diameter hose
mm 18.3Max. outer diameter hose
mmColour BlackThread length
mm 14Total length
mm 81.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000067Nominal diameter
mm 41.7Thread connection size OtherLowest inner diameter hose
mm 18.3Max. outer diameter hose
mmColour GreyThread length
mm 14Total length
mm 81.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000068Nominal diameter
mm 48.2Thread connection size OtherLowest inner diameter hose
mm 24.1Max. outer diameter hose
mmColour BlackThread length
mm 17.3Total length
mm 86.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000069Nominal diameter
mm 48.2Thread connection size OtherLowest inner diameter hose
mm 24.1Max. outer diameter hose
mmColour GreyThread length
mm 17.3Total length
mm 86.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000070Nominal diameter
mm 59.7Thread connection size OtherLowest inner diameter hose
mm 32.3Max. outer diameter hose
mmColour BlackThread length
mm 18Total length
mm 111.7AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000071Nominal diameter
mm 59.7Thread connection size OtherLowest inner diameter hose
mm 32.3Max. outer diameter hose
mmColour GreyThread length
mm 18Total length
mm 111.7AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000072Nominal diameter
mm 71Thread connection size OtherLowest inner diameter hose
mm 38.4Max. outer diameter hose
mmColour BlackThread length
mm 18.4Total length
mm 136.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000073Nominal diameter
mm 71Thread connection size OtherLowest inner diameter hose
mm 38.4Max. outer diameter hose
mmColour GreyThread length
mm 18.4Total length
mm 136.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
