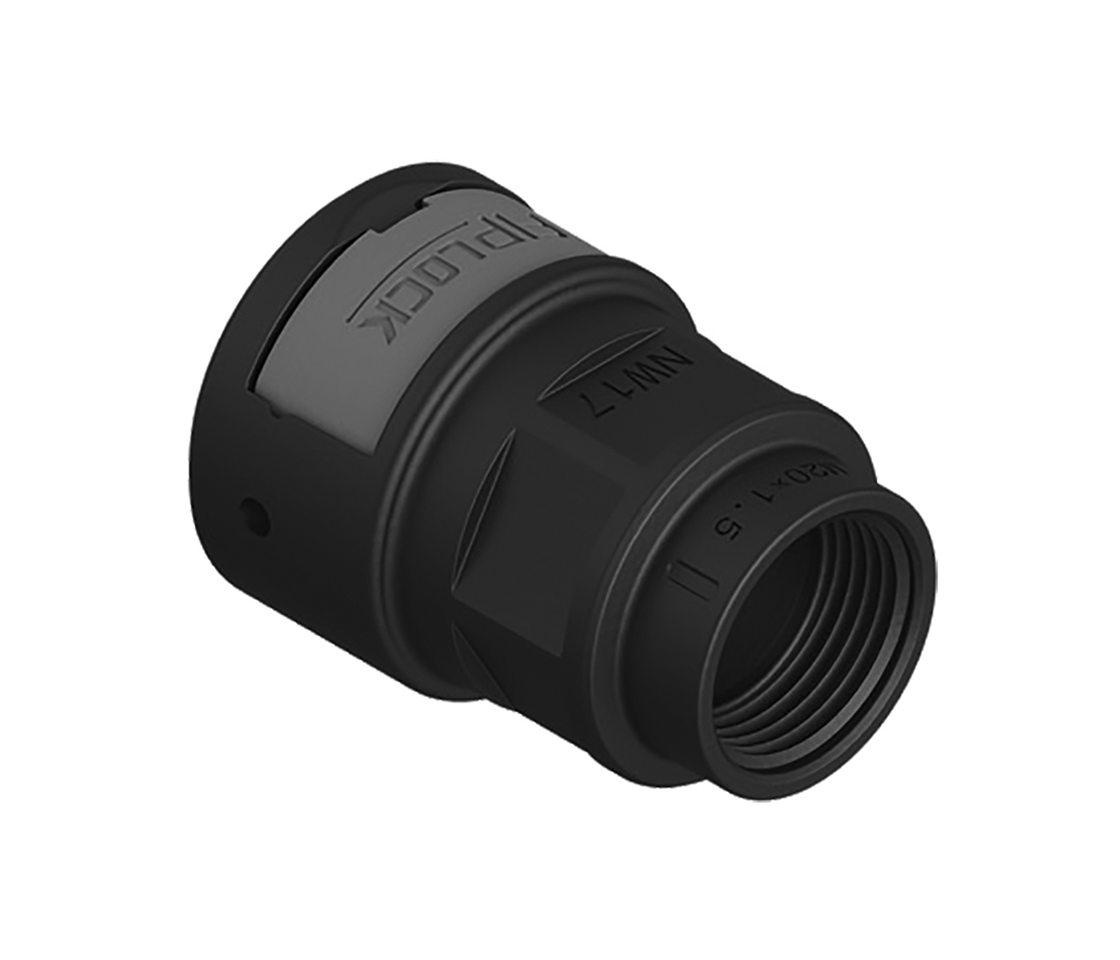

Fitting female thread, straight, metric, plastic thread
The one-piece cable protection conduit fitting AFPA-M with a metric female thread, made of specially modified, free-halogen polyamide 6, is self- extinguishing and resistant against most chemical media commonly used. With the brand new 360° interlocking system and an inside conduit seal, AFPA-M complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AFPA-M
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Thread
Construction type
Internal thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
16 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 880000222Nominal diameter
mm 24.7Thread connection size M16 x 1.5Lowest inner diameter hose
mm 20.2Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 36.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000223Nominal diameter
mm 24.7Thread connection size M16 x 1.5Lowest inner diameter hose
mm 20.2Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 36.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000225Nominal diameter
mm 28.5Thread connection size M16 x 1.5Lowest inner diameter hose
mm 20.2Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 38.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000227Nominal diameter
mm 34Thread connection size M20 x 1.5Lowest inner diameter hose
mm 26Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000229Nominal diameter
mm 41.7Thread connection size M25 x 1.5Lowest inner diameter hose
mm 29.2Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000231Nominal diameter
mm 48.4Thread connection size M32 x 1.5Lowest inner diameter hose
mm 36.2Max. outer diameter hose
mmColour GreyThread length
mm 10Total length
mm 49.7AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000233Nominal diameter
mm 59.7Thread connection size M40 x 1.5Lowest inner diameter hose
mm 45.3Max. outer diameter hose
mmColour GreyThread length
mm 10Total length
mm 62.8AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000235Nominal diameter
mm 71Thread connection size M50 x 1.5Lowest inner diameter hose
mm 56.3Max. outer diameter hose
mmColour GreyThread length
mm 10Total length
mm 62.8AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000236Nominal diameter
mm 71Thread connection size M63 x 1.5Lowest inner diameter hose
mm 69.3Max. outer diameter hose
mmColour BlackThread length
mm 10Total length
mm 63.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000237Nominal diameter
mm 71Thread connection size M63 x 1.5Lowest inner diameter hose
mm 69.3Max. outer diameter hose
mmColour GreyThread length
mm 10Total length
mm 63.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001314Nominal diameter
mm 28.5Thread connection size M16 x 1.5Lowest inner diameter hose
mm 20.2Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 38.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001315Nominal diameter
mm 34Thread connection size M20 x 1.5Lowest inner diameter hose
mm 26Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001316Nominal diameter
mm 41.7Thread connection size M25 x 1.5Lowest inner diameter hose
mm 29.2Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001317Nominal diameter
mm 48.4Thread connection size M32 x 1.5Lowest inner diameter hose
mm 36.2Max. outer diameter hose
mmColour BlackThread length
mm 10Total length
mm 49.7AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001318Nominal diameter
mm 59.7Thread connection size M40 x 1.5Lowest inner diameter hose
mm 45.3Max. outer diameter hose
mmColour BlackThread length
mm 10Total length
mm 62.8AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001319Nominal diameter
mm 71Thread connection size M50 x 1.5Lowest inner diameter hose
mm 56.3Max. outer diameter hose
mmColour BlackThread length
mm 10Total length
mm 62.8AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
