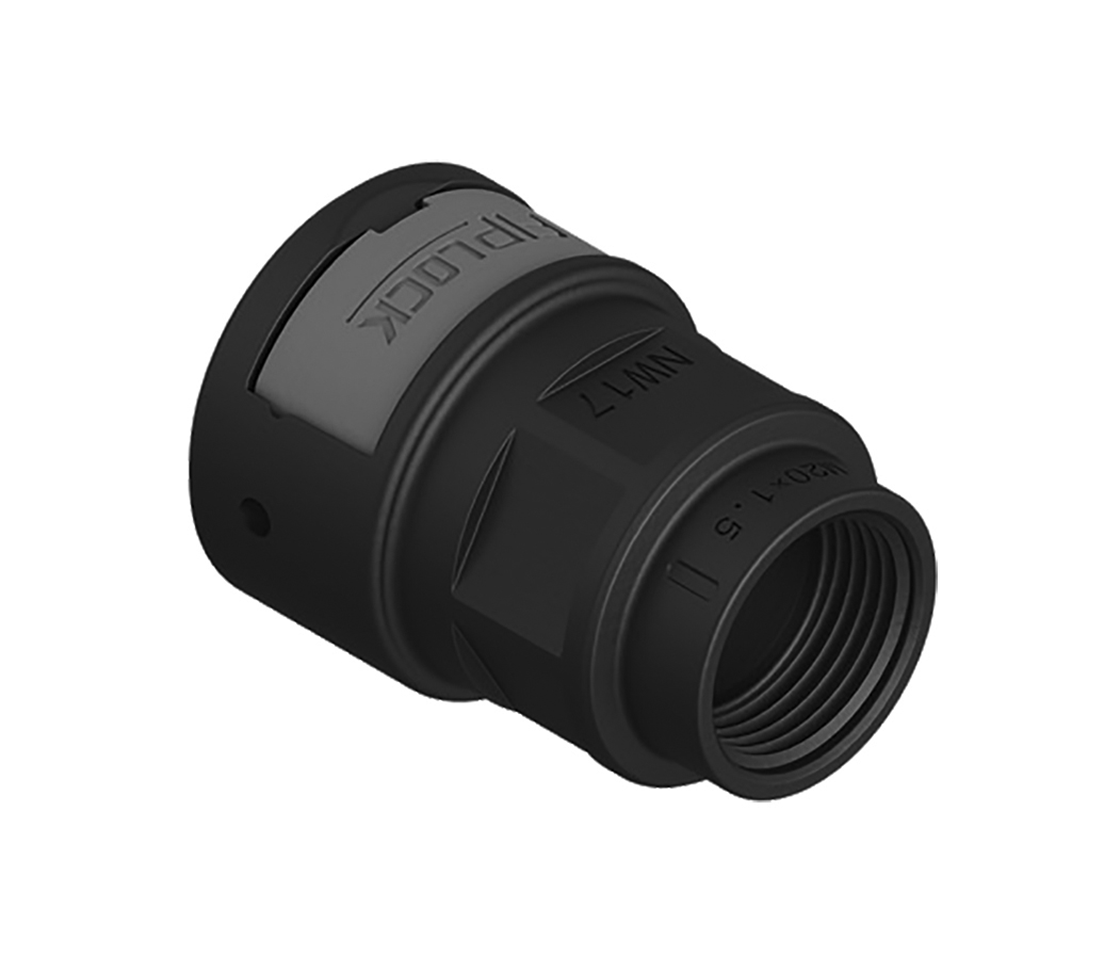

Fitting female thread, straight, PG, plastic thread
The one-piece cable protection conduit fitting AFPA-PG with a PG female thread, made of specially modified, free-halogen polyamide 6 is self- extinguishing and resistant against most chemical media commonly used. With the brand new 360° interlocking system and an inside conduit seal, AFPA-PG complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AFPA-PG
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Other
Thread
PG
Type of connection
Thread
Construction type
Internal thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
16 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
- Item 880000247Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 19.5Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 36.3AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000248Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 19.5Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 36.3AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000249Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 22.9Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 38.3AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000250Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 22.9Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 38.3AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000251Nominal diameter
mm 34Thread connection size PG13.5Lowest inner diameter hose
mm 25.9Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000252Nominal diameter
mm 34Thread connection size PG13.5Lowest inner diameter hose
mm 25.9Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000253Nominal diameter
mm 34Thread connection size PG16Lowest inner diameter hose
mm 28Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000254Nominal diameter
mm 34Thread connection size PG16Lowest inner diameter hose
mm 28Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000255Nominal diameter
mm 33.8Thread connection size PG21Lowest inner diameter hose
mm 32.7Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000256Nominal diameter
mm 33.8Thread connection size PG21Lowest inner diameter hose
mm 32.7Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 47.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000257Nominal diameter
mm 48.4Thread connection size PG29Lowest inner diameter hose
mm 42.5Max. outer diameter hose
mmColour BlackThread length
mm 10Total length
mm 49.7AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000258Nominal diameter
mm 48.4Thread connection size PG29Lowest inner diameter hose
mm 42.5Max. outer diameter hose
mmColour GreyThread length
mm 10Total length
mm 49.7AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000259Nominal diameter
mm 59.7Thread connection size PG36Lowest inner diameter hose
mm 51.4Max. outer diameter hose
mmColour BlackThread length
mm 13Total length
mm 65.75AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000260Nominal diameter
mm 59.7Thread connection size PG36Lowest inner diameter hose
mm 51.4Max. outer diameter hose
mmColour GreyThread length
mm 13Total length
mm 65.75AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000261Nominal diameter
mm 71Thread connection size PG48Lowest inner diameter hose
mm 53.7Max. outer diameter hose
mmColour BlackThread length
mm 13Total length
mm 66.25AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000262Nominal diameter
mm 71Thread connection size PG48Lowest inner diameter hose
mm 53.7Max. outer diameter hose
mmColour GreyThread length
mm 13Total length
mm 66.25AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
