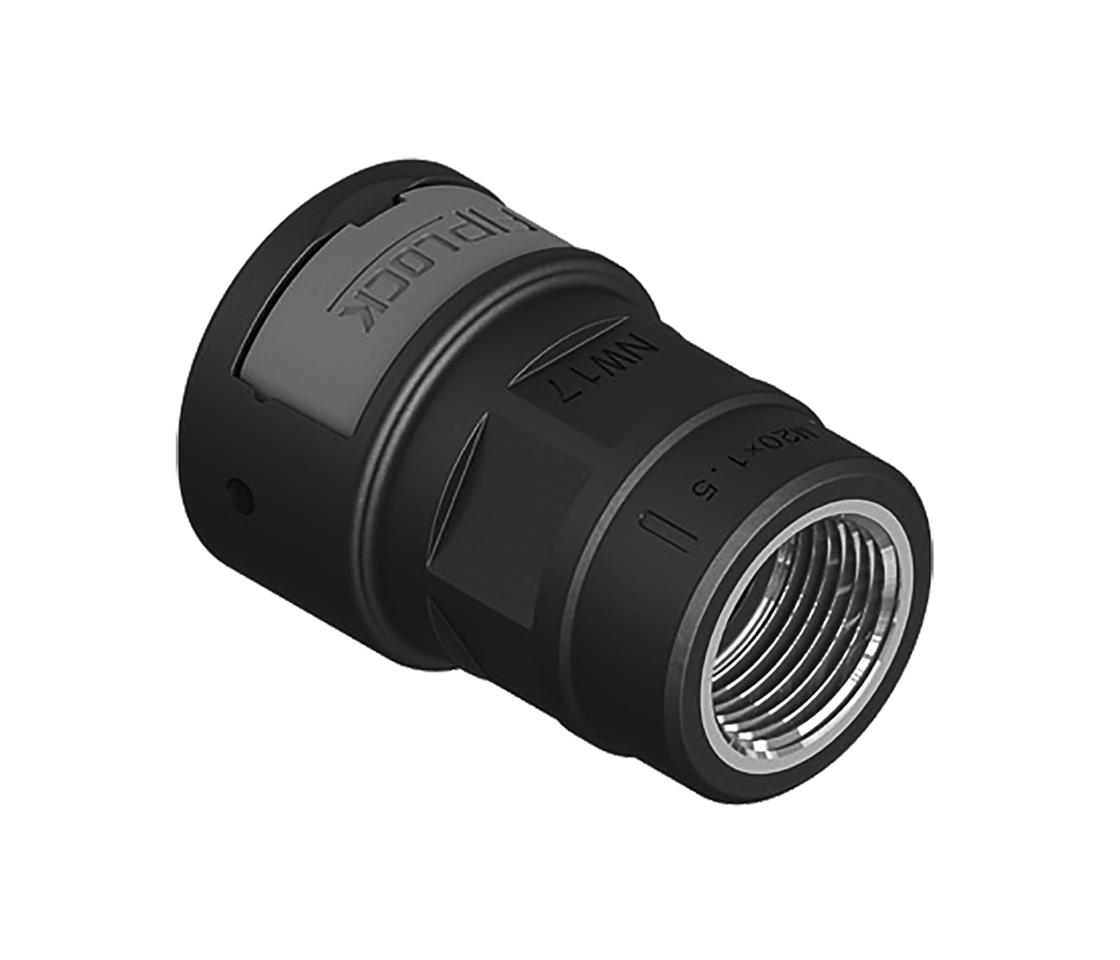

Fitting female thread, straight, PG, metal thread
The one-piece cable protection conduit fitting AFPA-PGM with a PG metal female thread, made of brass nickel plated and specially modified, free-halogen polyamide 6, is self-extinguishing and resistant against most chemical media coPGMonly used. With the brand new 360° interlocking system and an inside conduit seal, AFPA-PGM complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AFPA-PGM
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Other
Thread
PG
Thread length
9 mm
Total length
40.5 mm
Type of connection
Thread
Construction type
Internal thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
8 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 880000263Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 22.9Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000264Nominal diameter
mm 24.7Thread connection size PG11Lowest inner diameter hose
mm 26.2Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000265Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 26.6Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000266Nominal diameter
mm 34Thread connection size PG16Lowest inner diameter hose
mm 31.5Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000267Nominal diameter
mm 41.7Thread connection size PG21Lowest inner diameter hose
mm 38.3Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000268Nominal diameter
mm 48.4Thread connection size PG29Lowest inner diameter hose
mm 48.7Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000269Nominal diameter
mm 59.7Thread connection size PG36Lowest inner diameter hose
mm 59.4Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000270Nominal diameter
mm 71Thread connection size PG48Lowest inner diameter hose
mm 74Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
