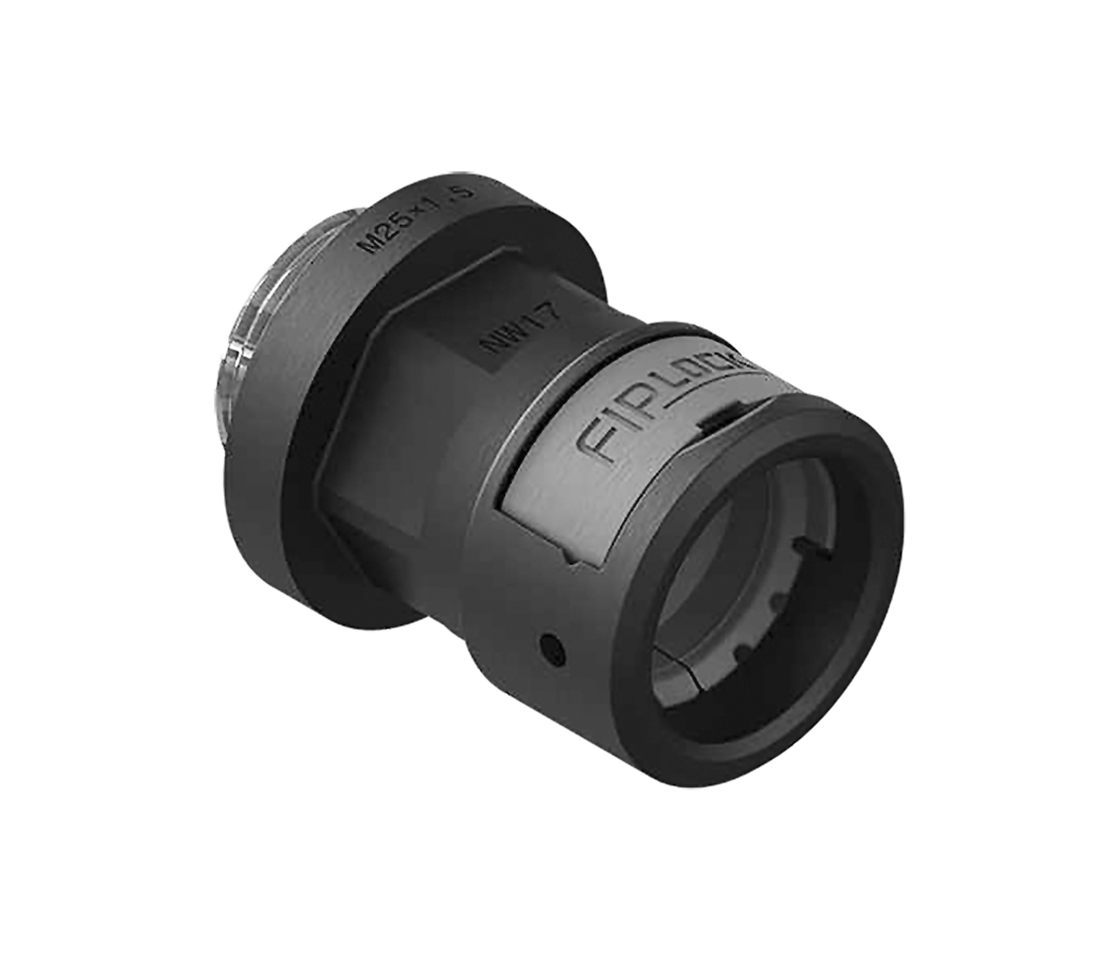

ASPA-MMK - Straight Cable Protection Fitting, Metric with Short Metal Thread
The ASPA-MMK cable protection fitting features a metric short brass thread and a body made from specially modified, halogen-free Polyamide 6, providing a premium cable protection solution. Self-extinguishing and resistant to chemicals, with a 360° locking system and internal pipe seals, it meets the highest protection class IP69. When used with FIPLOCK corrugated tubes, it ensures maximum protection against dust and water ingress. UV-resistant and suitable for a temperature range of -50 to +120 °C, it is perfect for demanding applications.
series
ASPA-MMK
Material
Polyamide (PA)
Thread material
Brass
Thread type
Metric
Thread
metrisch
Type of connection
Plug-in connection
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
28 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 880000434Nominal diameter
mm 10Thread connection size M12 x 1.5Lowest inner diameter hose
mm 5.6Max. outer diameter hose
mm 24.7Colour BlackThread length
mm 5Total length
mm 38AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000435Nominal diameter
mm 10Thread connection size M12 x 1.5Lowest inner diameter hose
mm 5.6Max. outer diameter hose
mm 24.7Colour GreyThread length
mm 5Total length
mm 38AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000436Nominal diameter
mm 10Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9.5Max. outer diameter hose
mm 24.7Colour BlackThread length
mm 5Total length
mm 38AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000437Nominal diameter
mm 10Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9.5Max. outer diameter hose
mm 24.7Colour GreyThread length
mm 5Total length
mm 38AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000438Nominal diameter
mm 12Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9.5Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 5Total length
mm 40AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000439Nominal diameter
mm 12Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9.5Max. outer diameter hose
mm 28.5Colour GreyThread length
mm 5Total length
mm 40AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000440Nominal diameter
mm 12Thread connection size M20 x 1.5Lowest inner diameter hose
mm 12.4Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 6Total length
mm 41AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000441Nominal diameter
mm 12Thread connection size M20 x 1.5Lowest inner diameter hose
mm 12.4Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 6Total length
mm 41AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000442Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13.2Max. outer diameter hose
mm 34Colour BlackThread length
mm 6Total length
mm 50.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000443Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13.2Max. outer diameter hose
mm 34Colour GreyThread length
mm 6Total length
mm 50.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000444Nominal diameter
mm 17Thread connection size M25 x 1.5Lowest inner diameter hose
mm 16.6Max. outer diameter hose
mm 34Colour BlackThread length
mm 7Total length
mm 51.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000445Nominal diameter
mm 17Thread connection size M25 x 1.5Lowest inner diameter hose
mm 16.6Max. outer diameter hose
mm 34Colour GreyThread length
mm 7Total length
mm 51.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000446Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mm 18.1Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 7Total length
mm 51.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000447Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mm 18.1Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 7Total length
mm 51.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000448Nominal diameter
mm 23Thread connection size M32 x 1.5Lowest inner diameter hose
mm 23.3Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 8Total length
mm 52.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000450Nominal diameter
mm 29Thread connection size M32 x 1.5Lowest inner diameter hose
mm 25.1Max. outer diameter hose
mm 48.4Colour BlackThread length
mm 8Total length
mm 53AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000451Nominal diameter
mm 29Thread connection size M32 x 1.5Lowest inner diameter hose
mm 25.1Max. outer diameter hose
mm 48.4Colour GreyThread length
mm 8Total length
mm 53AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000452Nominal diameter
mm 29Thread connection size M40 x 1.5Lowest inner diameter hose
mm 29Max. outer diameter hose
mm 48.4Colour BlackThread length
mm 8Total length
mm 53AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000453Nominal diameter
mm 29Thread connection size M40 x 1.5Lowest inner diameter hose
mm 29Max. outer diameter hose
mm 48.4Colour GreyThread length
mm 8Total length
mm 53AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000454Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mm 33Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 8Total length
mm 66.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000455Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mm 33Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 8Total length
mm 66.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000456Nominal diameter
mm 36Thread connection size M50 x 1.5Lowest inner diameter hose
mm 36.5Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 9Total length
mm 67.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000457Nominal diameter
mm 36Thread connection size M50 x 1.5Lowest inner diameter hose
mm 36.5Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 9Total length
mm 67.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000458Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mm 42.7Max. outer diameter hose
mm 71Colour BlackThread length
mm 9Total length
mm 67.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000459Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mm 42.7Max. outer diameter hose
mm 71Colour GreyThread length
mm 9Total length
mm 67.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000460Nominal diameter
mm 48Thread connection size M63 x 1.5Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mm 71Colour BlackThread length
mm 10Total length
mm 67.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000461Nominal diameter
mm 48Thread connection size M63 x 1.5Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mm 71Colour GreyThread length
mm 10Total length
mm 67.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001334Nominal diameter
mm 23Thread connection size M32 x 1.5Lowest inner diameter hose
mm 23.3Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 8Total length
mm 52.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
