Manifold Box ATS-BOX MB

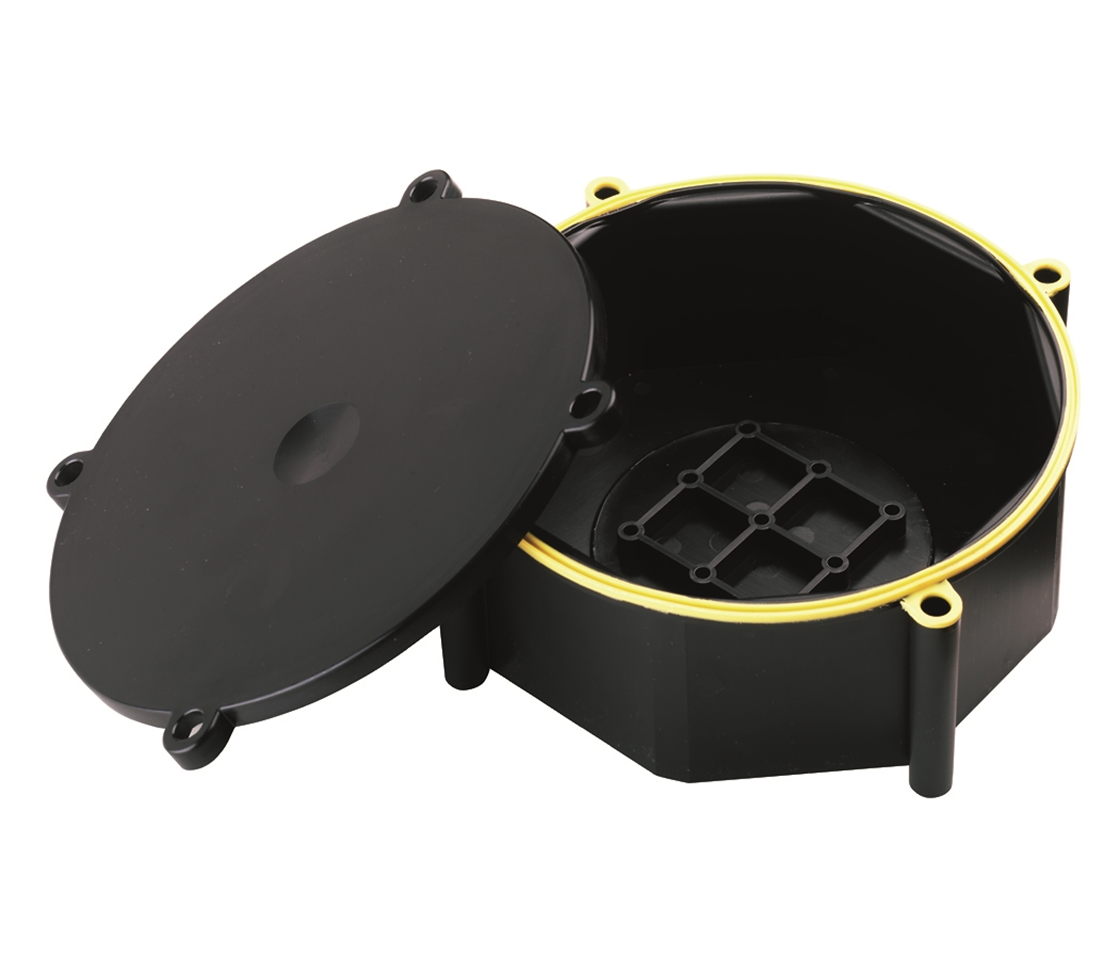

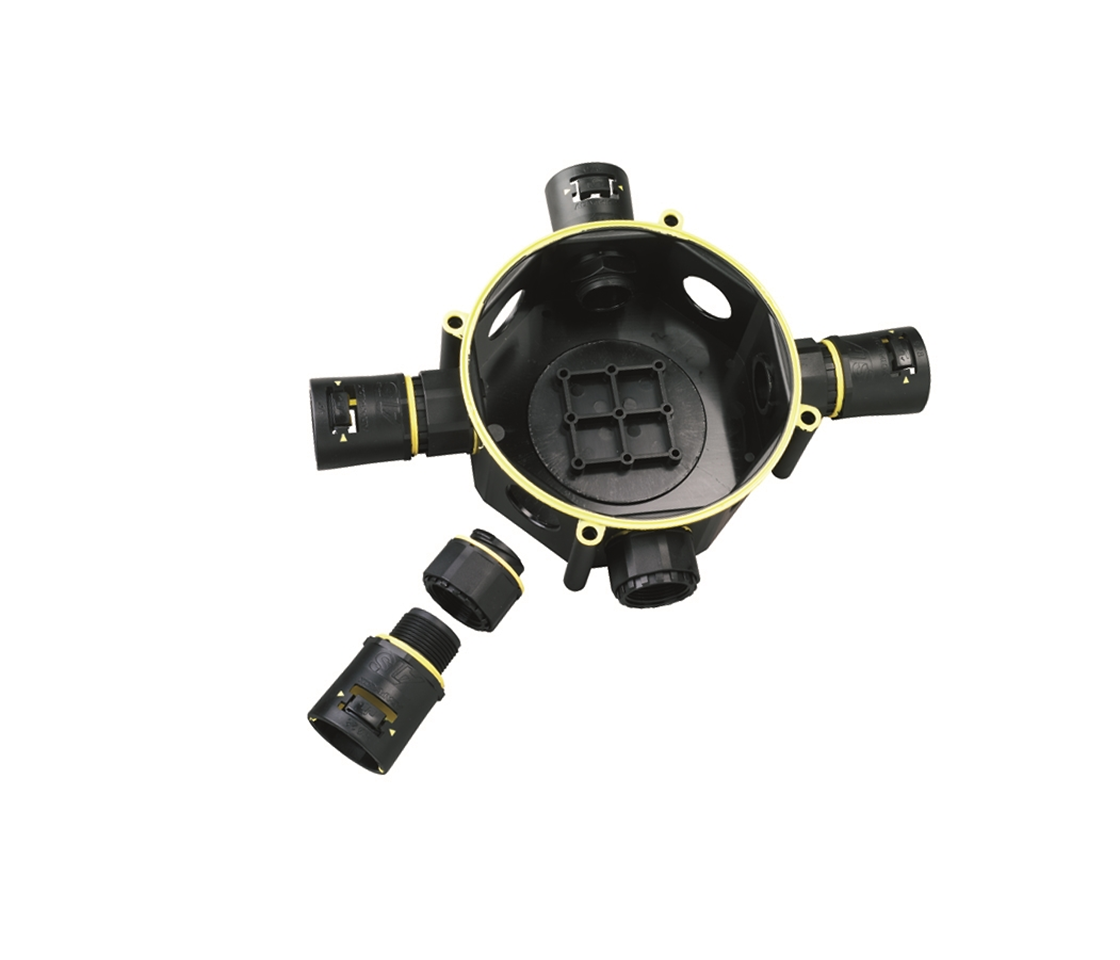

Each box has a removeable cover for ease of acces. The box seal is moulded, so remains captive for case of installation. Each manifold is provided with eight blank sides which require drilling/machining to suit the application. Manifolds can be supplied ready drilled to order subject to minimum order quantities. Threaded fittings with locknuts of Fastlok adapters can be used in each entry.
A = Dimensions.
Model
Junction box
Equipped with
Screwed terminal
Shape
Round
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
Inlet from the rear
No
Type of housing feed-through
Thread
Material
Plastic
Halogen free
No
Surface protection
Untreated
Degree of protection (IP)
IP68
Cover model
Mounting cover
Transparent cover
No
Castable
No
With casting compound
No
Sealable
No
With screening
No
Weatherproof
No
Operating temperature
-50…+120 °C
Explosion-tested version
No
UV-resistant
Yes
2 Artikel
Reset filters
Filter
Item
Max. conductor cross section mm²
For tube diameter
Length mm
Width mm
Depth mm
Diameter mm
Tackable
Number of inlets
Colour
2. Thread type
Availability
SU
Price / SUexcl. VAT
- Item 804006820Max. conductor cross section
mm²For tube diameter OtherLength
mmWidth
mmDepth
mmDiameter
mmTackable NoNumber of inletsColour Black2. Thread type M20AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804006832Max. conductor cross section
mm²For tube diameter OtherLength
mmWidth
mmDepth
mmDiameter
mmTackable NoNumber of inletsColour Black2. Thread type M32AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
