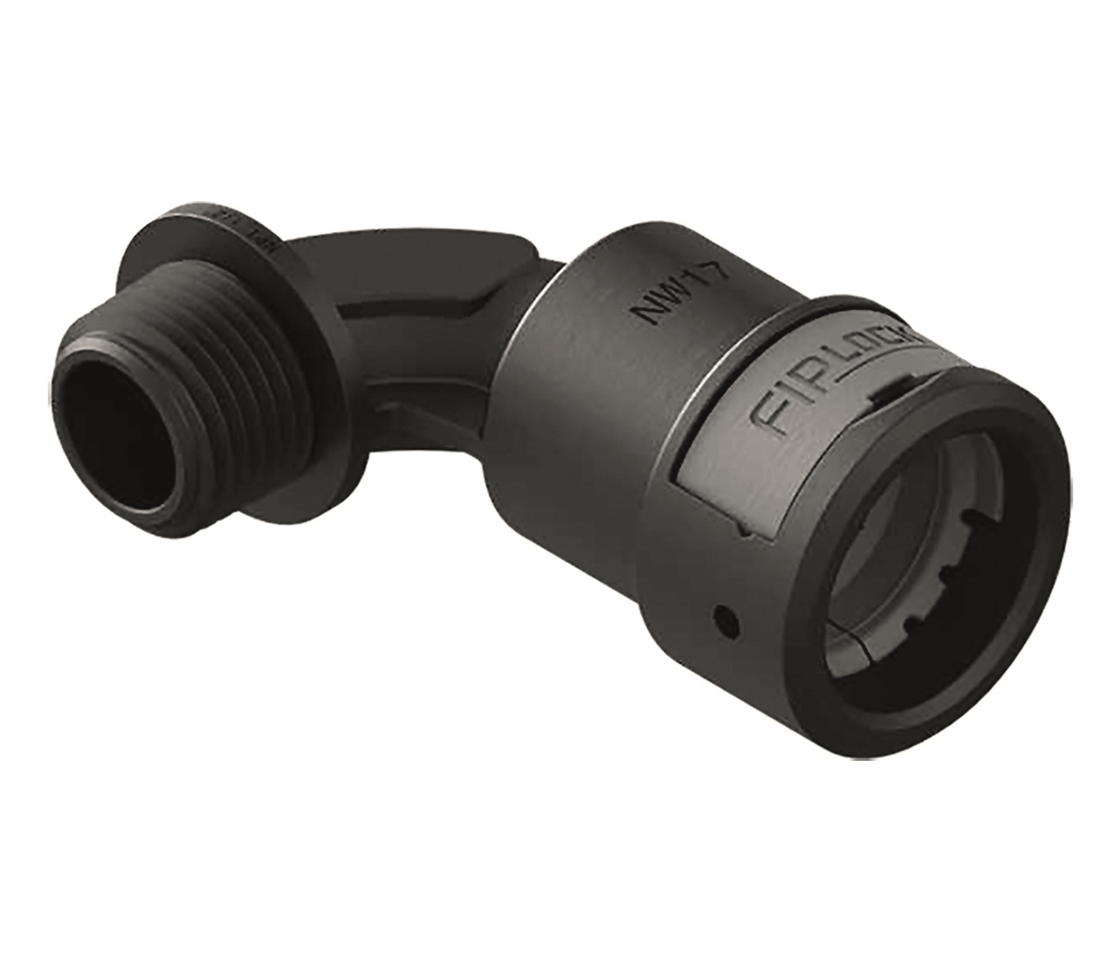

AWPA-NPT - arc angle 90°, NPT
The one-part 90° cable protection screw connection AWPA with NPT-connection thread of specially modified, halogen-free polyamide 6 is self-extinguishing and resilient against most common chemical media. Thanks to the newly developed 360° interlocking system and inside conduit seals, AWPA-NPT complies with the highest protection class IP69 in combination with our FIPLOCK corrugated tubes.
series
AWPA-NPT
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
NPT
Thread
NPT
Thread length
10.5 mm
Total length
39.6 mm
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
90°-Bend
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
4 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 880000598Nominal diameter
mm 24.7Thread connection size OtherLowest inner diameter hose
mm 10Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000599Nominal diameter
mm 24.7Thread connection size OtherLowest inner diameter hose
mm 10Max. outer diameter hose
mmColour GreyAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000600Nominal diameter
mm 28.5Thread connection size OtherLowest inner diameter hose
mm 12.8Max. outer diameter hose
mmColour BlackAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000601Nominal diameter
mm 28.5Thread connection size OtherLowest inner diameter hose
mm 12.8Max. outer diameter hose
mmColour GreyAvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
