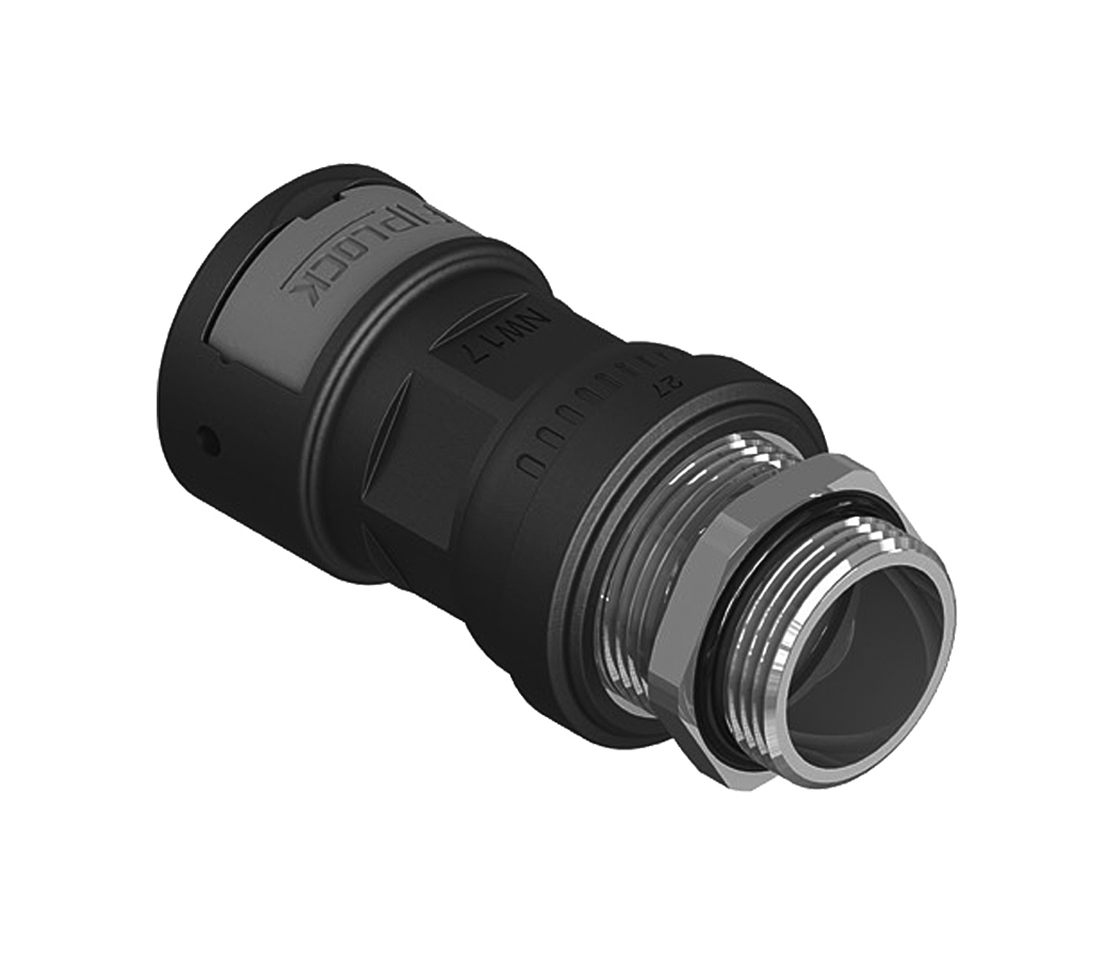

Fitting strain relief, straight, metric, short
The one-piece cable protection conduit fitting AZPA-MMK with integrated cable gland for additional strain relief of wires and conductors, with a short metric metal thread, is made of specially modified, free-halogen polyamide 6. With the brand new 360° interlocking system and an inside conduit seal, AZPA-MMK complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AZPA-MMK
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
13 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 880000670Nominal diameter
mm 17.7Thread connection size M12 x 1.5Lowest inner diameter hose
mm 24.7Max. outer diameter hose
mmColour BlackThread length
mm 21.6Total length
mm 54AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000671Nominal diameter
mm 22Thread connection size M16 x 1.5Lowest inner diameter hose
mm 24.7Max. outer diameter hose
mmColour BlackThread length
mm 26Total length
mm 58.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000672Nominal diameter
mm 22Thread connection size M16 x 1.5Lowest inner diameter hose
mm 28.5Max. outer diameter hose
mmColour BlackThread length
mm 27Total length
mm 60.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000673Nominal diameter
mm 26.2Thread connection size M20 x 1.5Lowest inner diameter hose
mm 28.5Max. outer diameter hose
mmColour BlackThread length
mm 30.4Total length
mm 64AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000674Nominal diameter
mm 26.2Thread connection size M20 x 1.5Lowest inner diameter hose
mm 34Max. outer diameter hose
mmColour BlackThread length
mm 31.2Total length
mm 73.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000676Nominal diameter
mm 31.8Thread connection size M25 x 1.5Lowest inner diameter hose
mm 41.7Max. outer diameter hose
mmColour BlackThread length
mm 36.7Total length
mm 75.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000677Nominal diameter
mm 39.5Thread connection size M32 x 1.5Lowest inner diameter hose
mm 41.7Max. outer diameter hose
mmColour BlackThread length
mm 44.4Total length
mm 80.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000678Nominal diameter
mm 39.5Thread connection size M32 x 1.5Lowest inner diameter hose
mm 48.4Max. outer diameter hose
mmColour BlackThread length
mm 44.8Total length
mm 80.9AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000679Nominal diameter
mm 49.5Thread connection size M40 x 1.5Lowest inner diameter hose
mm 48.4Max. outer diameter hose
mmColour BlackThread length
mm 53.1Total length
mm 87.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000680Nominal diameter
mm 49.5Thread connection size M40 x 1.5Lowest inner diameter hose
mm 59.7Max. outer diameter hose
mmColour BlackThread length
mm 55Total length
mm 100.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000681Nominal diameter
mm 59Thread connection size M50 x 1.5Lowest inner diameter hose
mm 59.7Max. outer diameter hose
mmColour BlackThread length
mm 64.6Total length
mm 104.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000682Nominal diameter
mm 59Thread connection size M50 x 1.5Lowest inner diameter hose
mm 71Max. outer diameter hose
mmColour BlackThread length
mm 64Total length
mm 104.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880001359Nominal diameter
mm 31.8Thread connection size M25 x 1.5Lowest inner diameter hose
mm 34Max. outer diameter hose
mmColour BlackThread length
mm 36.7Total length
mm 75.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
