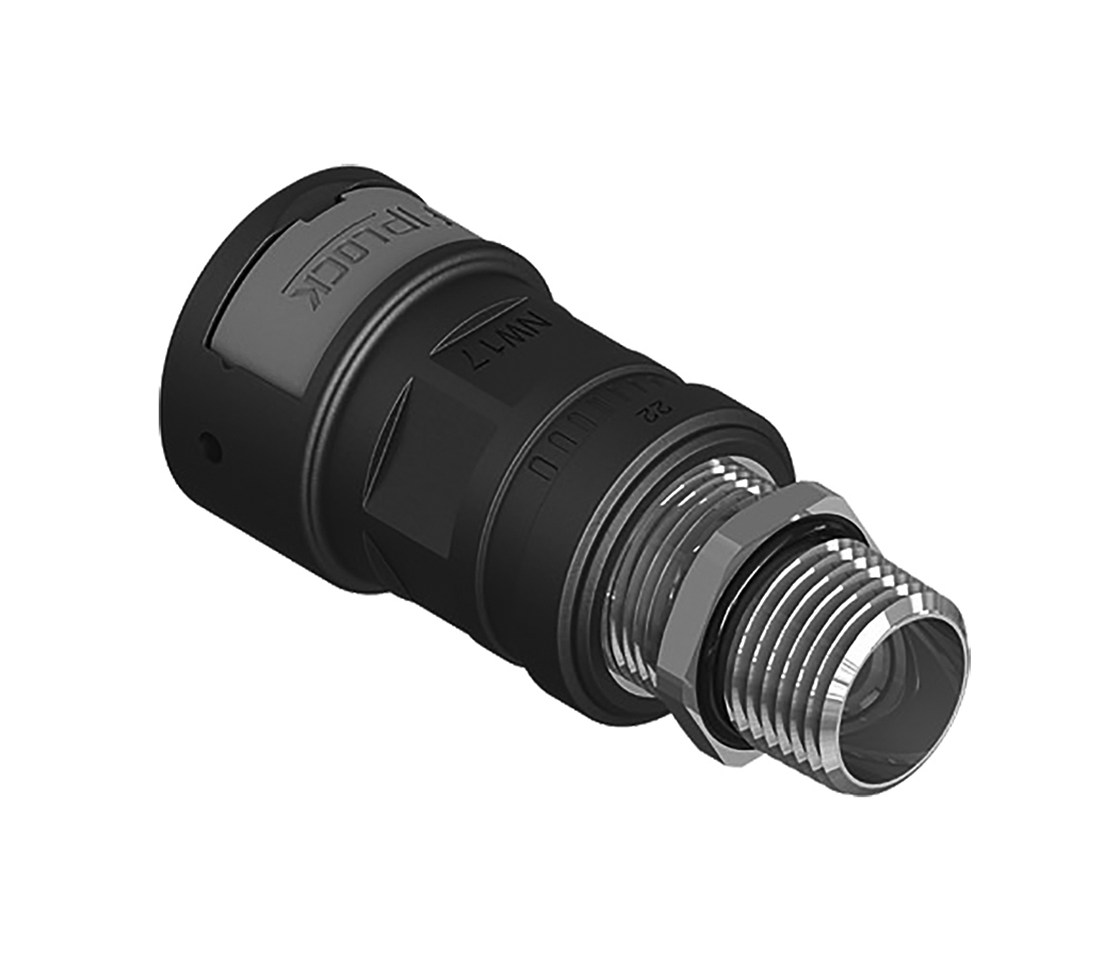

Fitting strain relief, straight, NPT, metal thread
The one-piece cable protection conduit fitting AZPA-NPTM with integrated cable gland for additional strain relief of wires and conductors, with a NPT metal thread brass nickel plated, is made of specially modified, free-halogen polyamide 6. With the brand new 360° interlocking system and an inside conduit seal, AZPA-NPTM complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AZPA-NPTM
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
NPT
Thread
NPT
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
14 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 880000709Nominal diameter
mm 24.7Thread connection size OtherLowest inner diameter hose
mm 17.6Max. outer diameter hose
mmColour BlackThread length
mm 21.6Total length
mm 62.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000710Nominal diameter
mm 24.7Thread connection size OtherLowest inner diameter hose
mm 22Max. outer diameter hose
mmColour BlackThread length
mm 26Total length
mm 66.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000711Nominal diameter
mm 28.5Thread connection size OtherLowest inner diameter hose
mm 22Max. outer diameter hose
mmColour BlackThread length
mm 27Total length
mm 68.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000712Nominal diameter
mm 28.5Thread connection size OtherLowest inner diameter hose
mm 26.4Max. outer diameter hose
mmColour BlackThread length
mm 30.4Total length
mm 71AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000713Nominal diameter
mm 34Thread connection size OtherLowest inner diameter hose
mm 26.4Max. outer diameter hose
mmColour BlackThread length
mm 31.2Total length
mm 80.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000714Nominal diameter
mm 34Thread connection size OtherLowest inner diameter hose
mm 31.9Max. outer diameter hose
mmColour BlackThread length
mm 36.7Total length
mm 82.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000715Nominal diameter
mm 41.7Thread connection size OtherLowest inner diameter hose
mm 31.9Max. outer diameter hose
mmColour BlackThread length
mm 36.7Total length
mm 82.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000716Nominal diameter
mm 41.7Thread connection size OtherLowest inner diameter hose
mm 39.6Max. outer diameter hose
mmColour BlackThread length
mm 44.8Total length
mm 86.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000717Nominal diameter
mm 48.4Thread connection size OtherLowest inner diameter hose
mm 39.6Max. outer diameter hose
mmColour BlackThread length
mm 44.8Total length
mm 86.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000718Nominal diameter
mm 48.4Thread connection size OtherLowest inner diameter hose
mm 49.5Max. outer diameter hose
mmColour BlackThread length
mm 53.1Total length
mm 94.4AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000719Nominal diameter
mm 59.7Thread connection size OtherLowest inner diameter hose
mm 49.5Max. outer diameter hose
mmColour BlackThread length
mm 55Total length
mm 107.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000720Nominal diameter
mm 59.7Thread connection size OtherLowest inner diameter hose
mm 59Max. outer diameter hose
mmColour BlackThread length
mm 64.6Total length
mm 111.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000721Nominal diameter
mm 71Thread connection size OtherLowest inner diameter hose
mm 59Max. outer diameter hose
mmColour BlackThread length
mm 64Total length
mm 111.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000722Nominal diameter
mm 71Thread connection size OtherLowest inner diameter hose
mm 73.5Max. outer diameter hose
mmColour BlackThread length
mm 78.4Total length
mm 113.8AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
