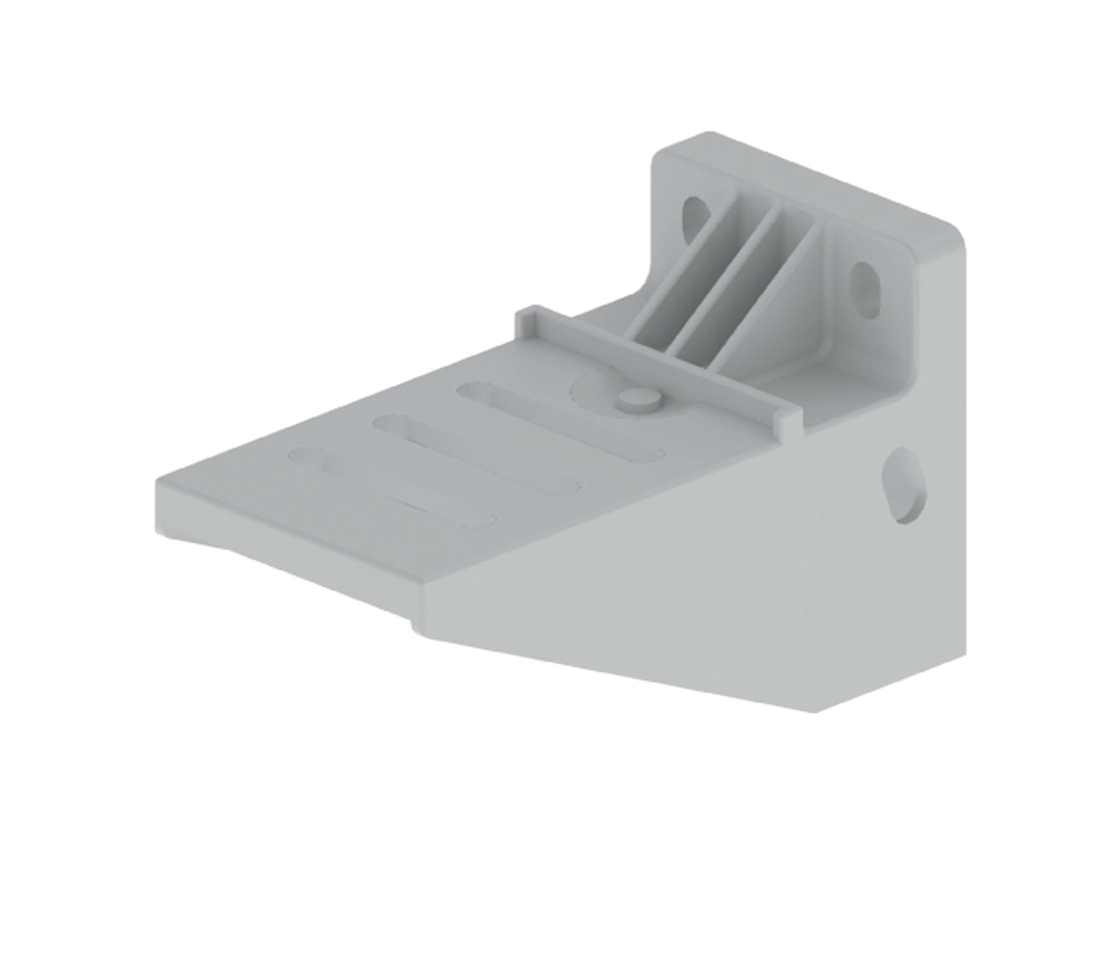

Insulating bracket, UNEX U23X
To fix cable trays horizontally to the wall. Fixing of the bracket to the wall: use metal screws Ø10. To achieve the maximum resistance the bracket must be properly mounted on the wall. Insulating material. Safety: electrical, mechanical and against fire. Easy and quick mounting.
Model
Wall bracket
Suitable for circuit integrity
No
Material
Plastic
Material quality
Polyvinyl chloride (PVC)
Surface protection
Other
Colour
Grey
RAL-number
7035
series
Isolierender Ausleger, U23X
8 Artikel
Reset filters
Filter
Item
Length mm
Width mm
Height mm
Suitable for cable management system width mm
Load bearing capacity kN
Weight
Availability
SU
Price / SU in CHFexcl. VAT
- Item 107600121Length
mm 160Width
mm 80Height
mm 97Suitable for cable management system width
mm 75Load bearing capacity
kN 0.343WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600122Length
mm 355Width
mm 80Height
mm 162Suitable for cable management system width
mm 300Load bearing capacity
kN 0.93WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600123Length
mm 215Width
mm 80Height
mm 109Suitable for cable management system width
mm 150Load bearing capacity
kN 0.441WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600124Length
mm 265Width
mm 80Height
mm 109Suitable for cable management system width
mm 200Load bearing capacity
kN 0.588WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600125Length
mm 461Width
mm 80Height
mm 162Suitable for cable management system width
mm 400Load bearing capacity
kN 1.134WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600126Length
mm 560Width
mm 80Height
mm 220Suitable for cable management system width
mm 500Load bearing capacity
kN 1.421WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600127Length
mm 660Width
mm 80Height
mm 220Suitable for cable management system width
mm 600Load bearing capacity
kN 1.712WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600128Length
mm 365Width
mm 80Height
mm 109Suitable for cable management system width
mm 300Load bearing capacity
kN 0.588WeightAvailabilitySU 4 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
