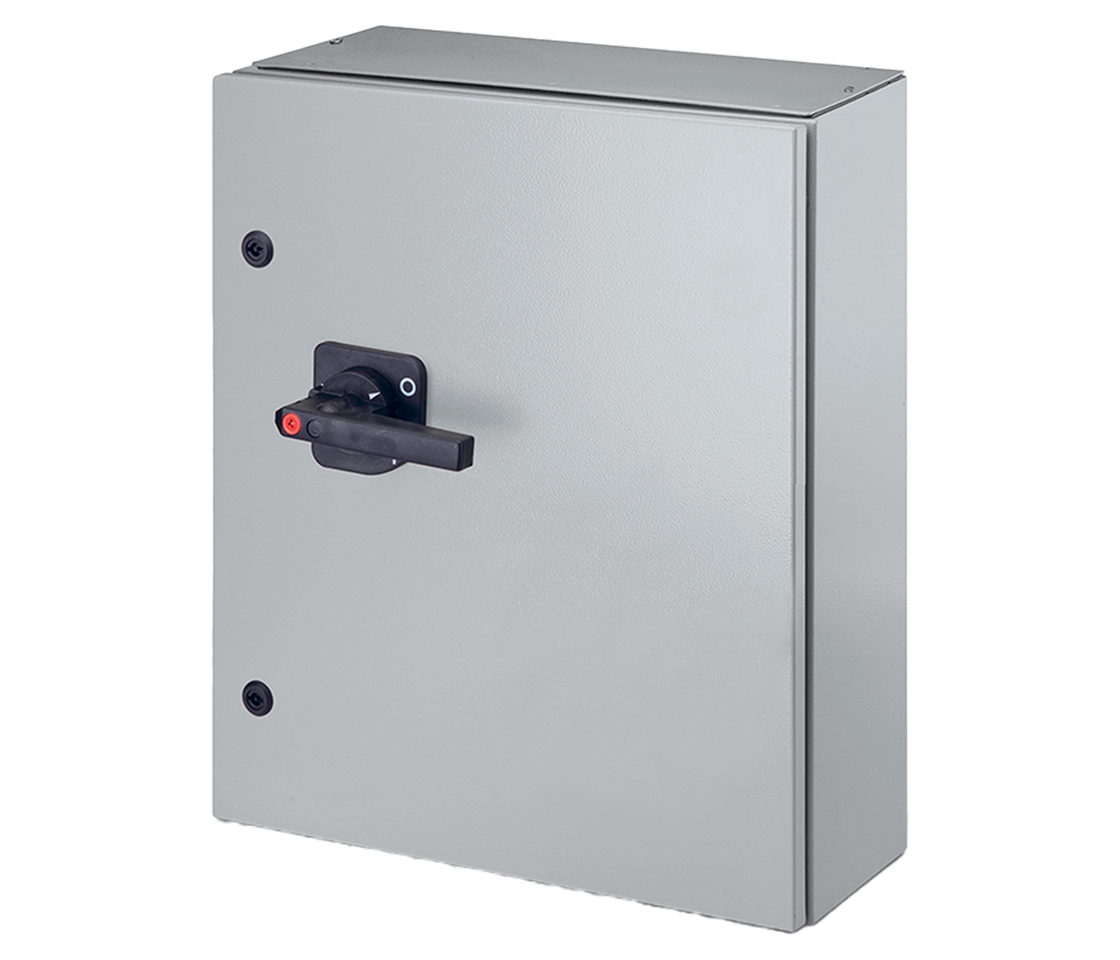

Scame isolating switch, 3P+N

The SCAME 590.KGE80005 load break switch is designed for demanding electrical installations in industrial and commercial environments. Featuring a rated current of 800 A, a 3P+N configuration, and IP65 protection, it ensures high safety, durability, and reliable performance even under harsh conditions.

Key features & benefits: - High performance: rated current of 800 A up to 690 V, suitable for heavy-duty industrial applications - Flexible configuration: 3 poles plus neutral (3P+N) for versatile use in electrical distribution systems - Robust protection: IP65 enclosure provides effective protection against dust and water jets - Safe operation: lockable handle allows secure disconnection during maintenance and service work

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

Yes

Version as emergency stop installation

Version as reversing switch

Max. rated operation voltage Ue AC

690 V

Rated operating voltage

1000 V

Rated short-time withstand current lcw

35 kA

Rated operation power at AC-23, 400 V

330 kW

Switching power at 400 V

330 kW

Conditioned rated short-circuit current Iq

100 kA

Colour control element

Black

Type of control element

Turn button

Interlockable

Yes

Type of electrical connection of main circuit

Bolt connection

IP protection

IP 65 to 5 bar

series

590.KGE100003

Scame isolating switch, 3P+N
