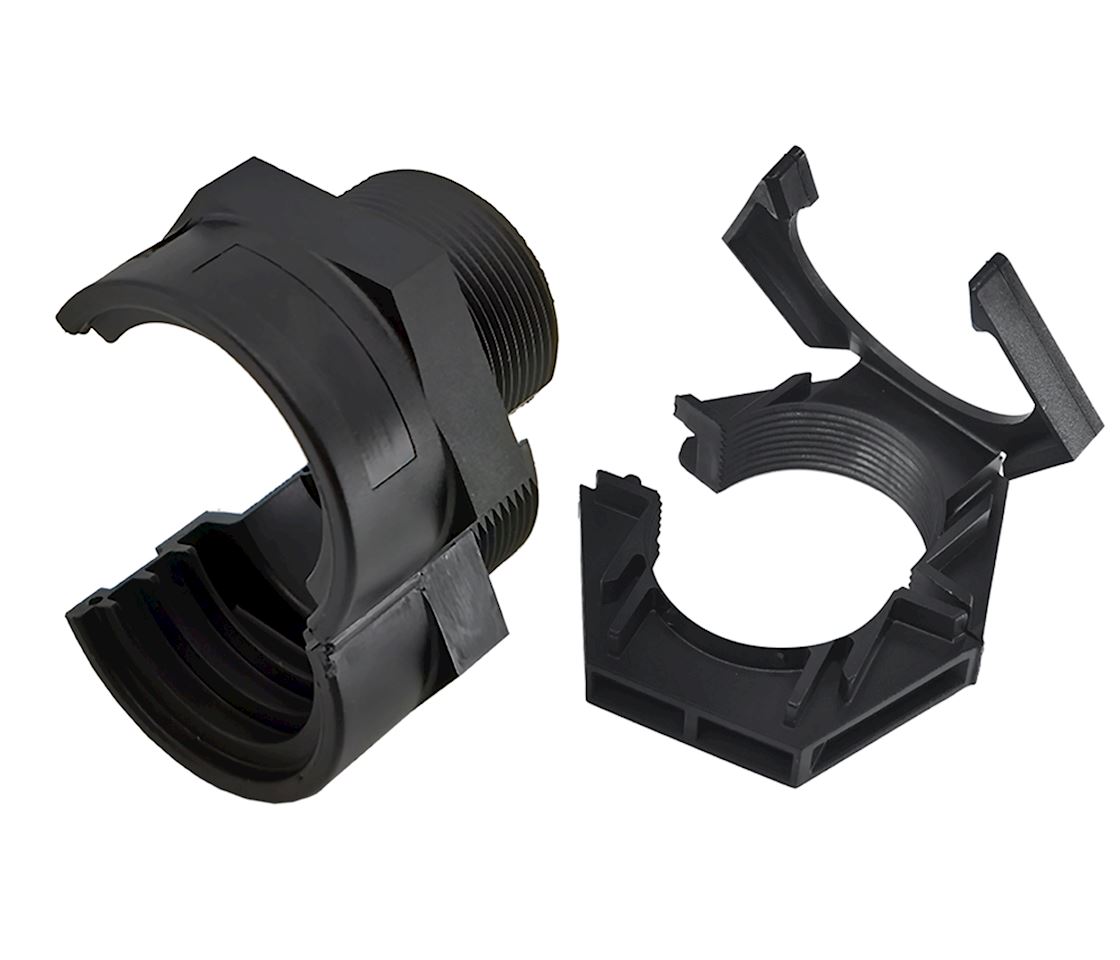

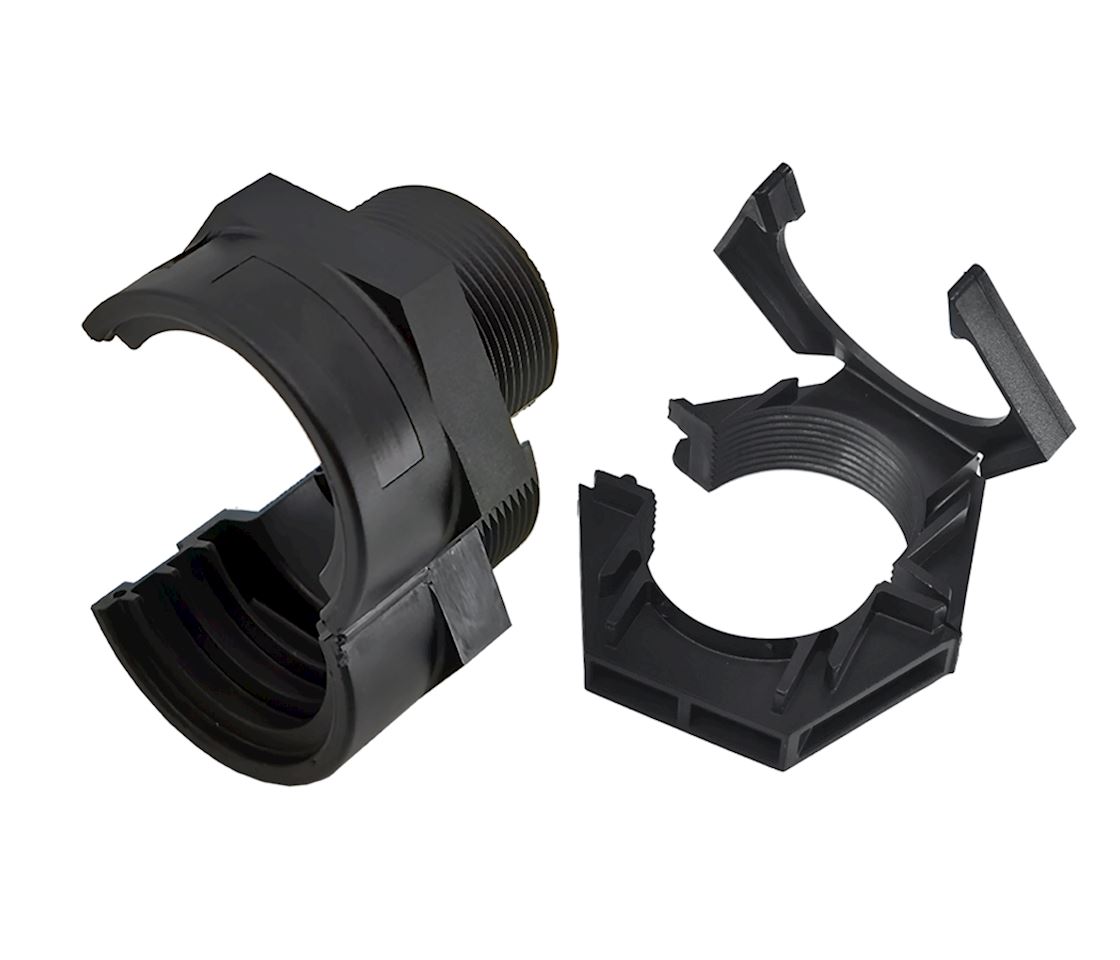

Cable fitting DUPLEX SVPA
In two pieces, also the locknut. Secured against unforeseen opening. Suitable for later installation.
series
DUPLEX-SVPA(M)
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Plug-in connection
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP40
Halogen free
No
UV-resistant
No
Operating temperature
-40...+120 °C
