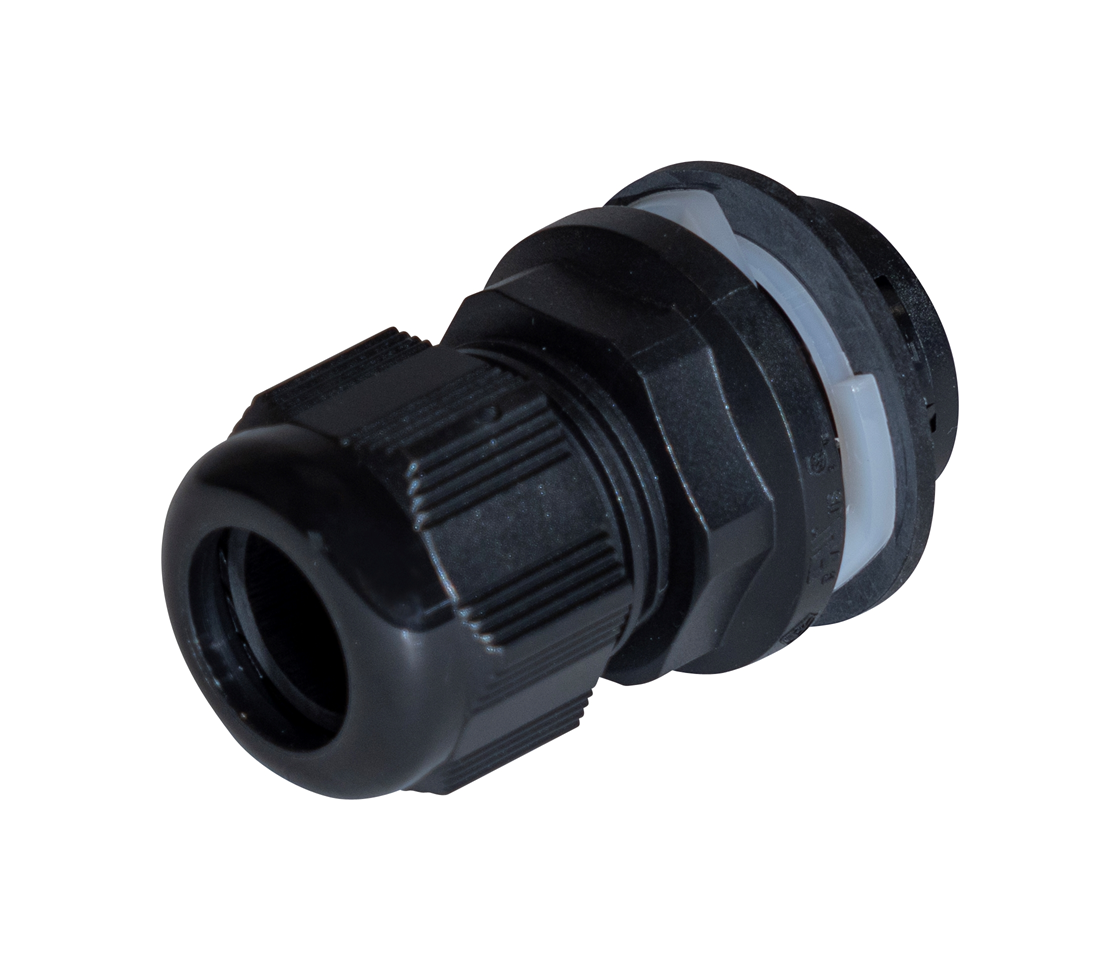

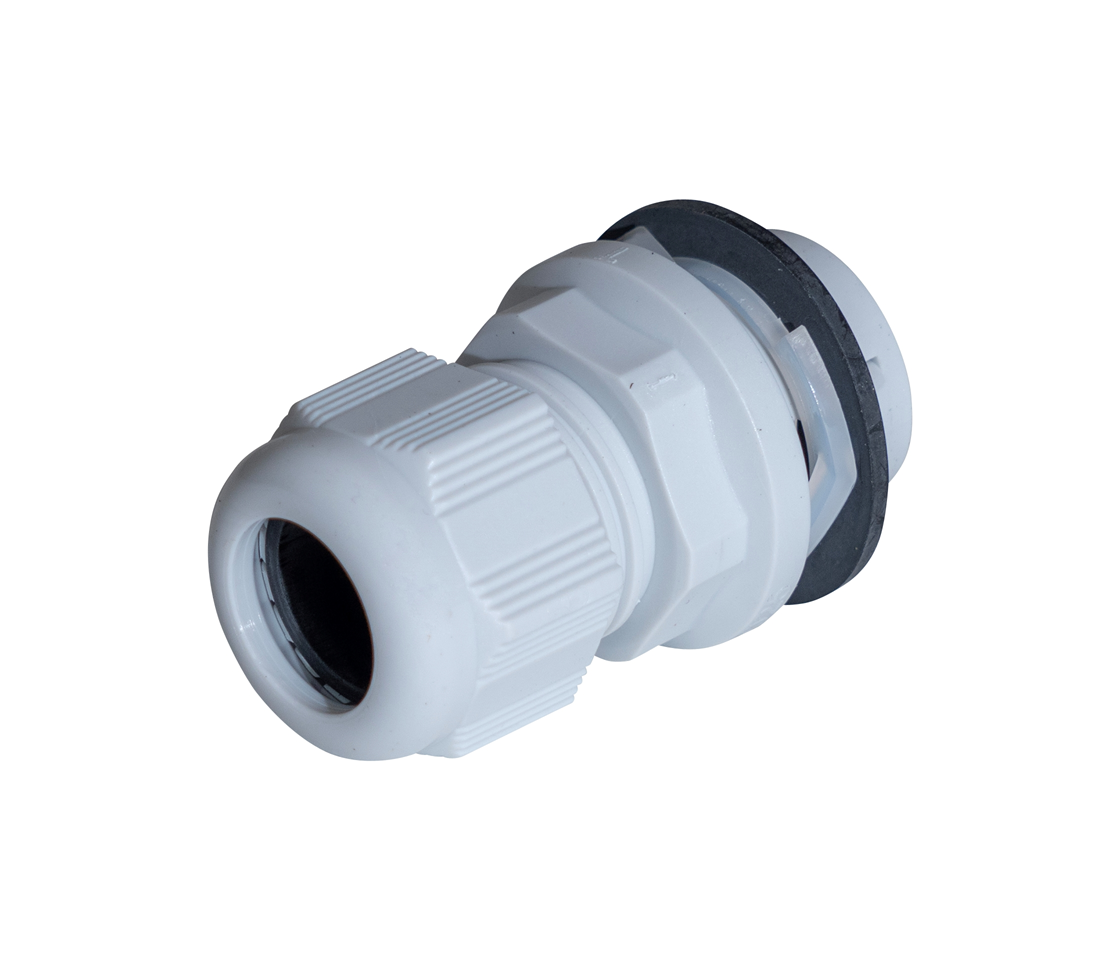

Plica SNAP-IN K (M)
Enhance your automation level efficiently with the innovative cable gland from PLICA SNAP-IN K. This cable gland is designed to significantly reduce your workload. Thanks to its simple click-in system, the cable gland is effortlessly installable, making it ideal for tight spaces. The new mounting system of the cable gland eliminates the need for a locknut, which makes the installation even faster and more straightforward. Learn more about this time-saving solution at PLICA SNAP-IN K and see how it optimizes your processes.
Pitch thread
1.5 mm
Wrench width
22 mm
Colour
Grey
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Glass-fibre reinforced
No
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
No
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
No
Operating temperature
-20...+100 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
EMC-version
No
Fire behavior
flame resistance UL 94 V2
standard
EN 60423
interior hot melt adhesive
No
sealing quality
Cloroprene
10 Artikel
Reset filters
Filter
Item
Thread type
Nominal thread size metric/PG
number opening
Thread length mm
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SUexcl. VAT
- Item 963200016Thread type MetricNominal thread size metric/PG 16number openingThread length
mm 9Suitable for cable diameter
mm 5...10RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963200020Thread type MetricNominal thread size metric/PG 20number openingThread length
mm 9Suitable for cable diameter
mm 6...12RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963200025Thread type MetricNominal thread size metric/PG 25number openingThread length
mm 9Suitable for cable diameter
mm 11...17RAL-number 7035AvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963200032Thread type MetricNominal thread size metric/PG 32number openingThread length
mm 9Suitable for cable diameter
mm 15...21RAL-number 7035AvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963200040Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 11.5Suitable for cable diameter
mm 19...28RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963300116Thread type MetricNominal thread size metric/PG 16number openingThread length
mm 9Suitable for cable diameter
mm 5...10RAL-number 9005AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963300120Thread type MetricNominal thread size metric/PG 20number openingThread length
mm 9Suitable for cable diameter
mm 6...12RAL-number 9005AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963300125Thread type MetricNominal thread size metric/PG 25number openingThread length
mm 9Suitable for cable diameter
mm 11...17RAL-number 9005AvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963300132Thread type MetricNominal thread size metric/PG 32number openingThread length
mm 9Suitable for cable diameter
mm 15...21RAL-number 9005AvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 963300140Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 11.5Suitable for cable diameter
mm 19...28RAL-number 9005AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
