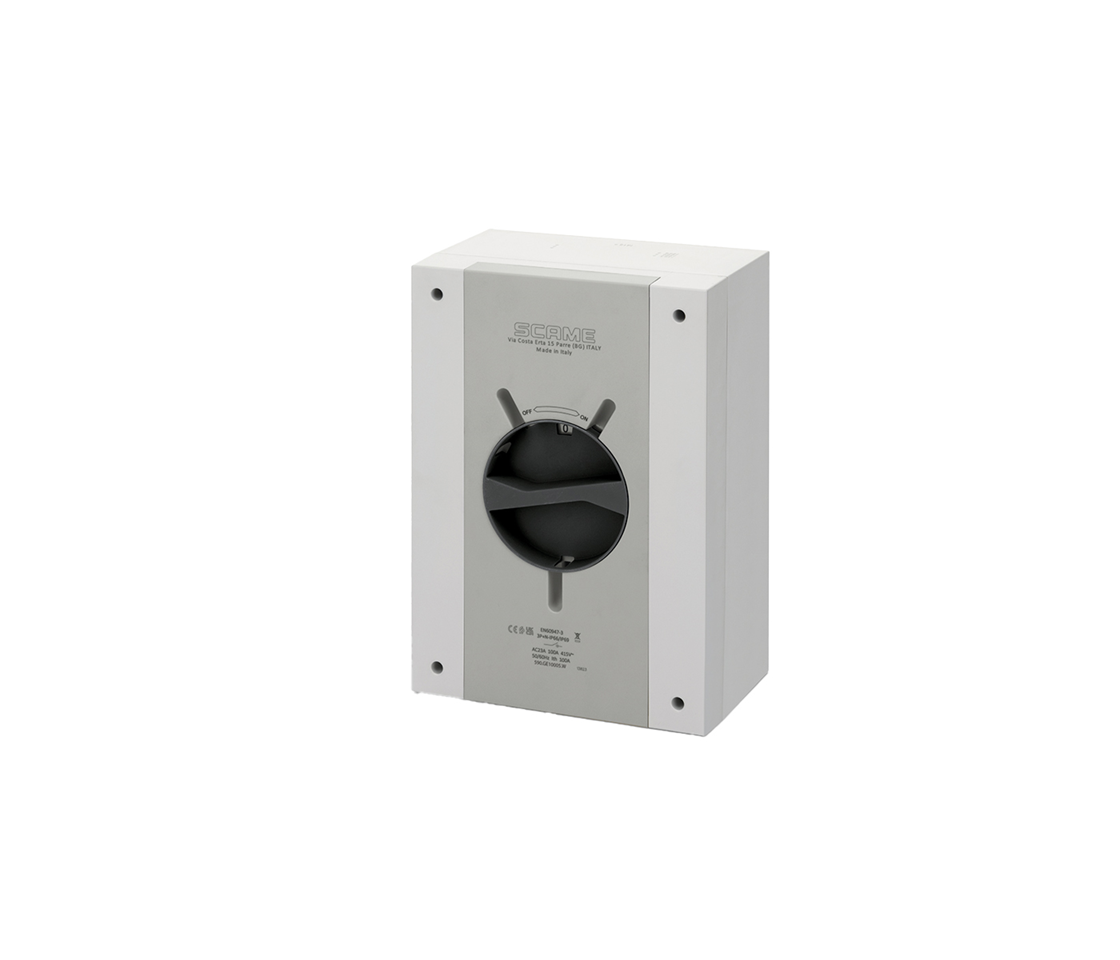

    Scame isolating switch

    • Scame Lastentrennschalter
    Scame Lastentrennschalter

    Version as emergency stop installation
    No
    Version as reversing switch
    No
    Max. rated operation voltage Ue AC
    690 V
    Rated permanent current Iu
    32 A
    Rated permanent current at AC-21, 400 V
    32 A
    Rated short-time withstand current lcw
    0 kA
    Rated operation power at AC-23, 400 V
    15 kW
    Switching power at 400 V
    15 kW
    Conditioned rated short-circuit current Iq
    10 kA
    Number of poles
    4
    Motor drive optional
    Nein
    Motor drive integrated
    Nein
    Voltage release optional
    Nein

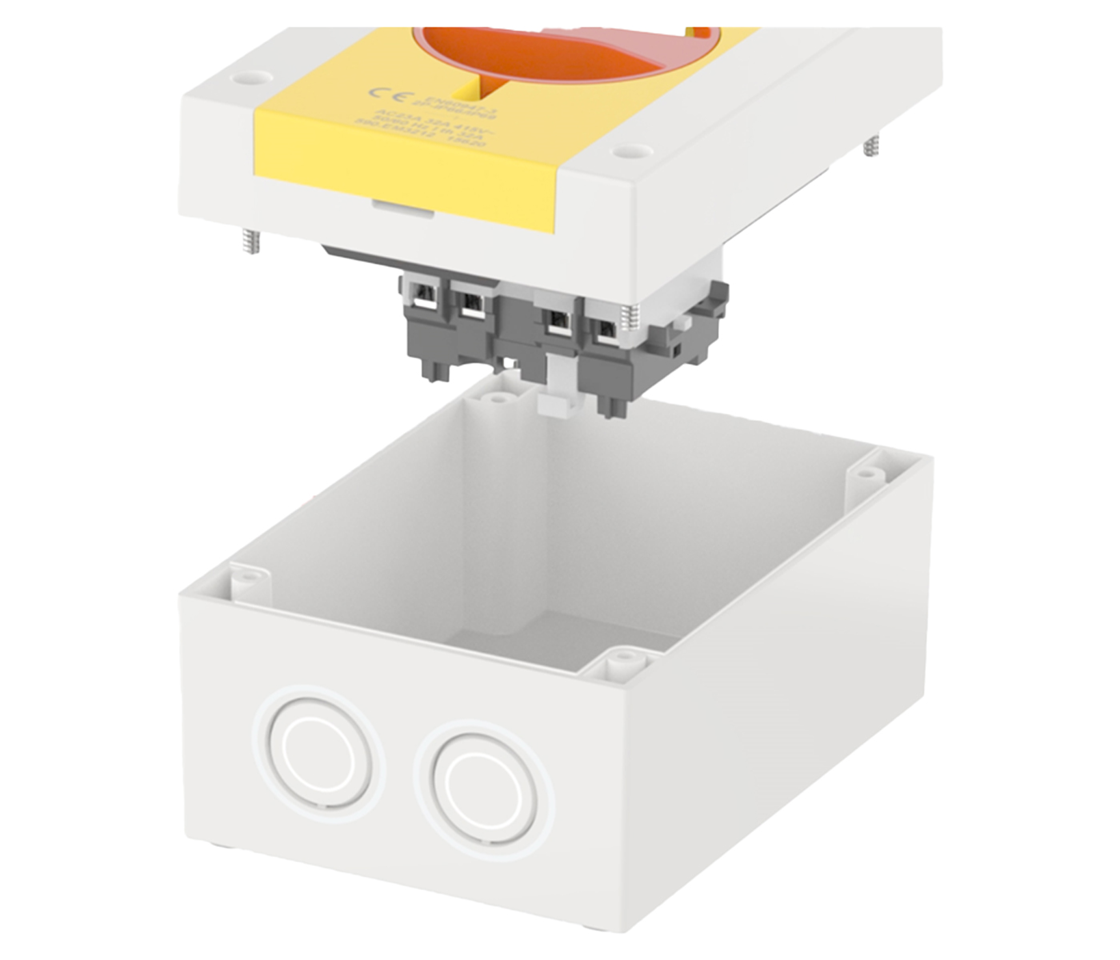

    Device construction
    Complete device in housing
    Suitable for floor mounting
    Nein
    Suitable for front mounting 4-hole
    Nein
    Suitable for front mounting centre
    Nein
    Suitable for distribution board installation
    Nein
    Suitable for intermediate mounting
    Nein
    Colour control element
    Black
    Type of control element
    Turn button
    Interlockable
    Yes

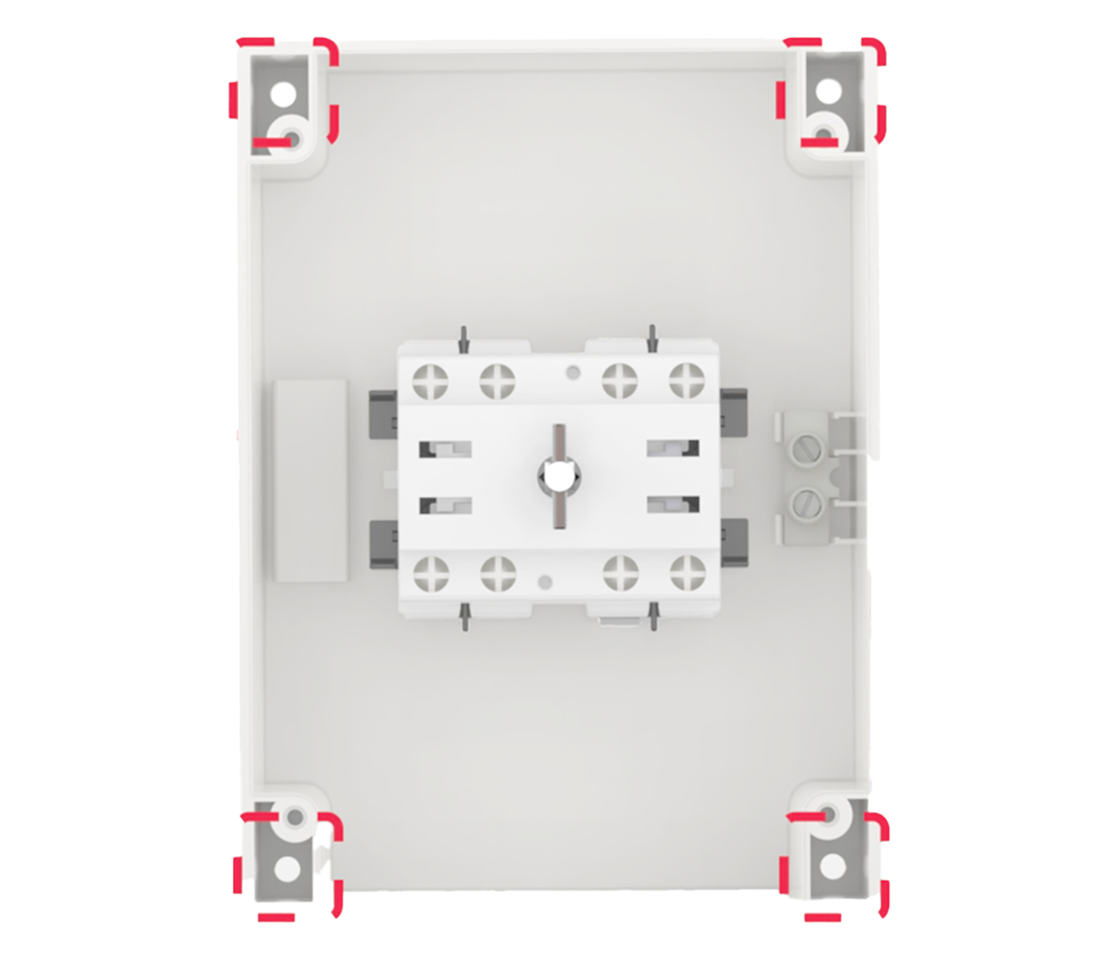

    Type of electrical connection of main circuit
    Screw connection
    With pre-assembled cabling
    Nein
    Degree of protection (IP), front side
    IP65
