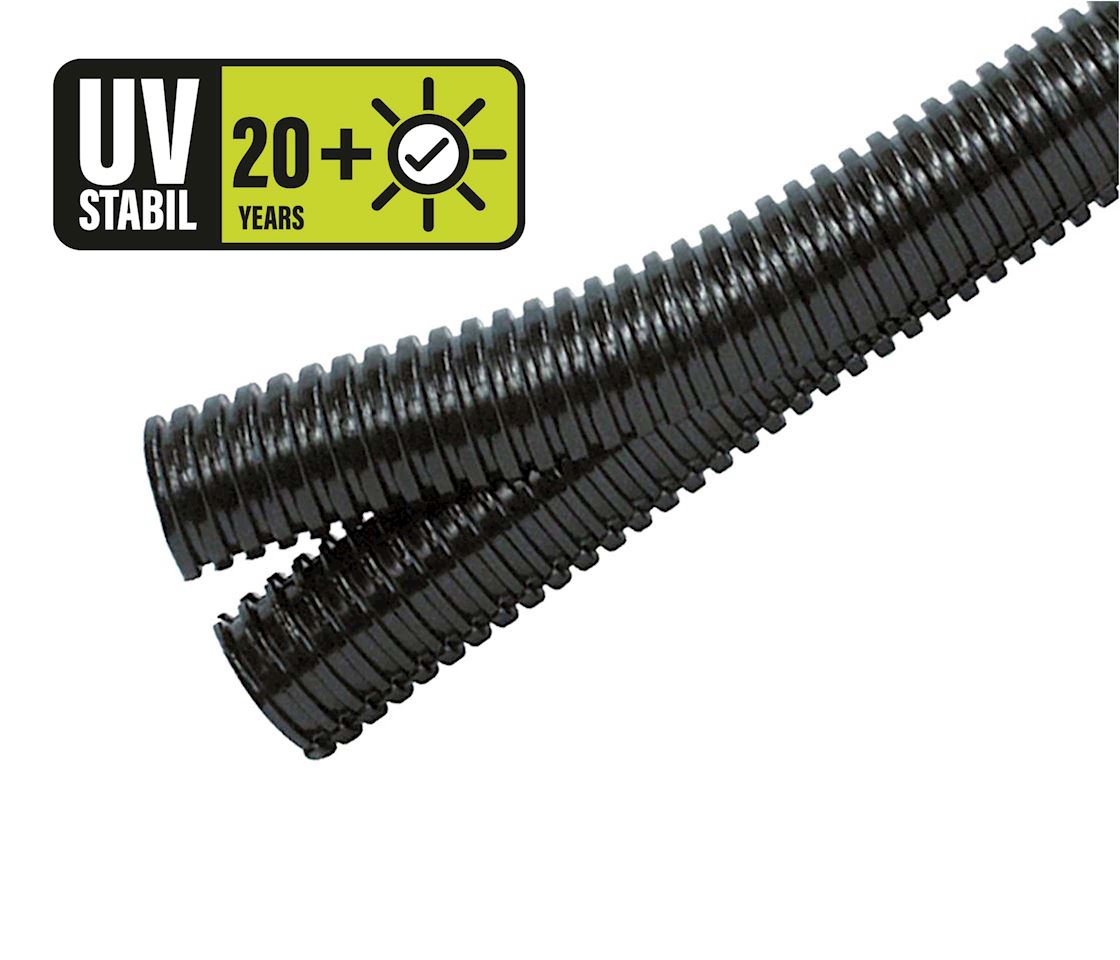

UV-stable DUPLEX PP Corrugated Hose for Demanding Applications

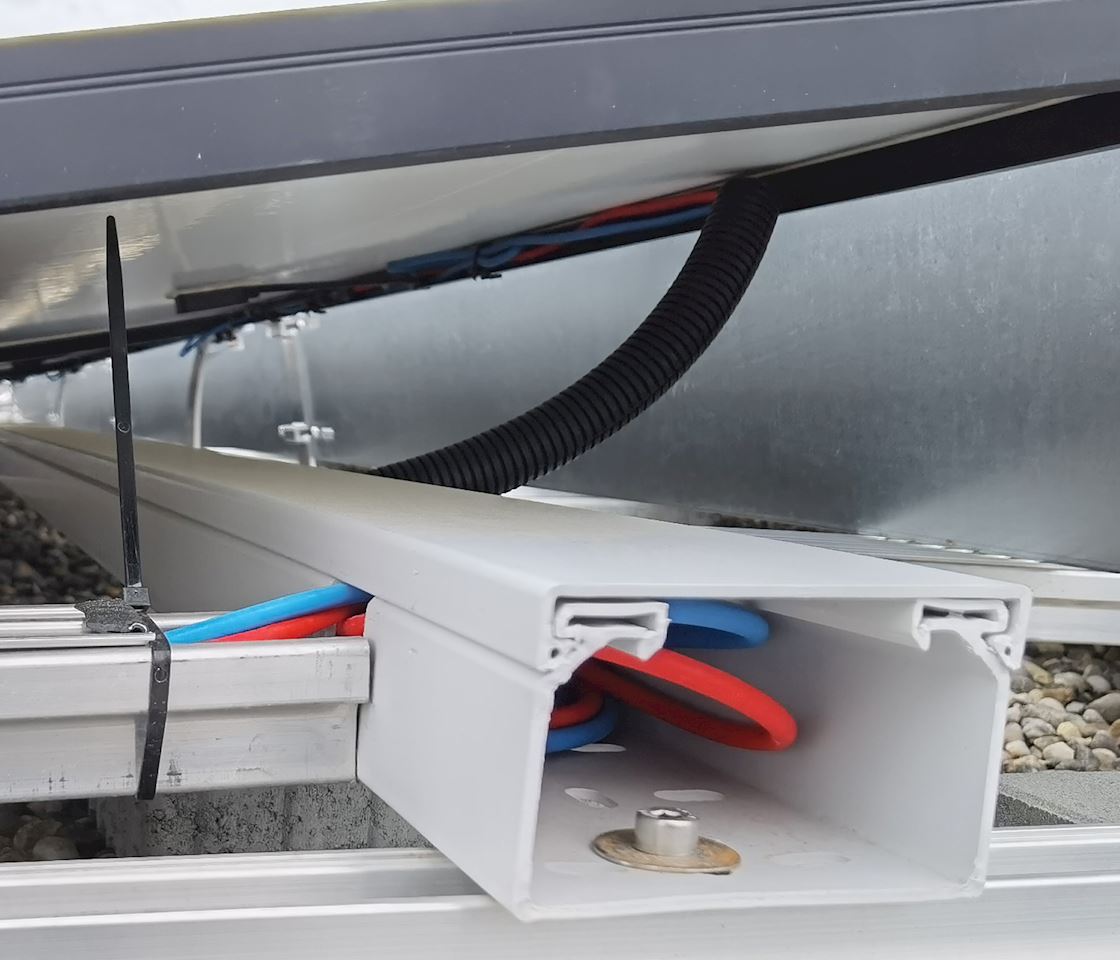

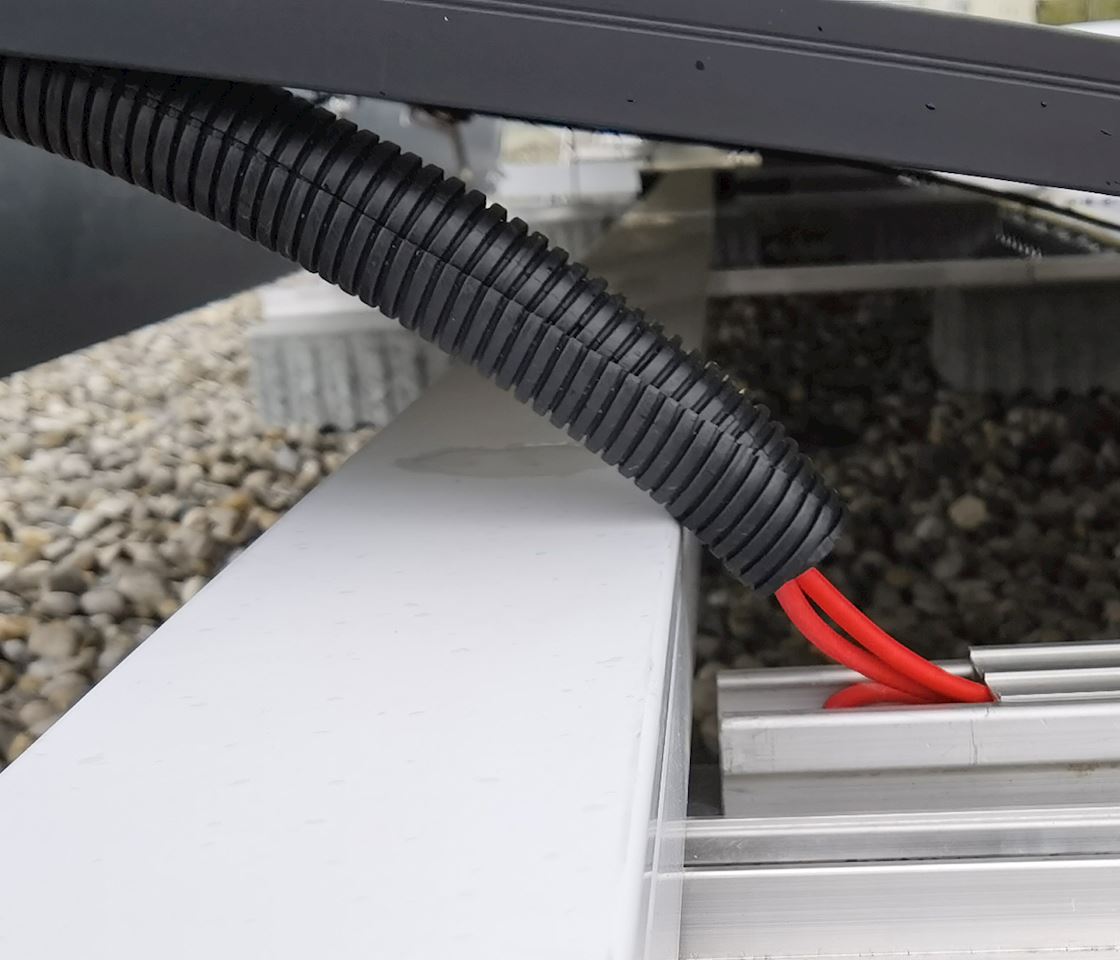

The DUPLEX PP UV corrugated hose offers outstanding flexibility in a medium-weight design. With high mechanical resistance and splash-proof, this two-part hose is ideal for use in solar and photovoltaic systems, as well as for rodent-proof cable protection. Its complementary profile geometry ensures precise and twist-free assembly. With UV stability of over 20 years in Central European climates, it is especially suitable for applications requiring high chemical resistance. Additionally, the hose is halogen-free and meets IP40 protection standards.
Material
Polypropylene (PP)
Sheathing material
Not sheathed
Lengthwise slotted
Yes
Closable (two-part)
Yes
Operating temperature
-40...+135 °C
Fire resistance according to UL94
Other
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Degree of protection (IP)
IP40
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
operating temperatur
-40…+135
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
10 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 801221010Nominal diameter
mm 10Outer diameter
mm 13.4Inner diameter
mm 8.4Bending radius, static
mm 70Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221011Nominal diameter
mm 11Outer diameter
mm 16.1Inner diameter
mm 11Bending radius, static
mm 80Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221014Nominal diameter
mm 14Outer diameter
mm 18.5Inner diameter
mm 12.5Bending radius, static
mm 95Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221016Nominal diameter
mm 16Outer diameter
mm 21.5Inner diameter
mm 16Bending radius, static
mm 100Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221020Nominal diameter
mm 20Outer diameter
mm 25.3Inner diameter
mm 19.2Bending radius, static
mm 130Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221023Nominal diameter
mm 23Outer diameter
mm 30.8Inner diameter
mm 23.4Bending radius, static
mm 155Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221029Nominal diameter
mm 29Outer diameter
mm 35.5Inner diameter
mm 27.3Bending radius, static
mm 160Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221037Nominal diameter
mm 37Outer diameter
mm 41.4Inner diameter
mm 31Bending radius, static
mm 205Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221045Nominal diameter
mm 45Outer diameter
mm 54Inner diameter
mm 42.7Bending radius, static
mm 190Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801221070Nominal diameter
mm 70Outer diameter
mm 79.8Inner diameter
mm 67.5Bending radius, static
mm 375Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
