    Fire index

    WHAT IS A FIRE INDEX?

    The fire index indicates how easily a material can ignite, how much smoke it produces, and how significantly it contributes to the spread of fire.This is determined through tests and plays a crucial role in building safety.


    DEFINITION OF FIRE INDEX

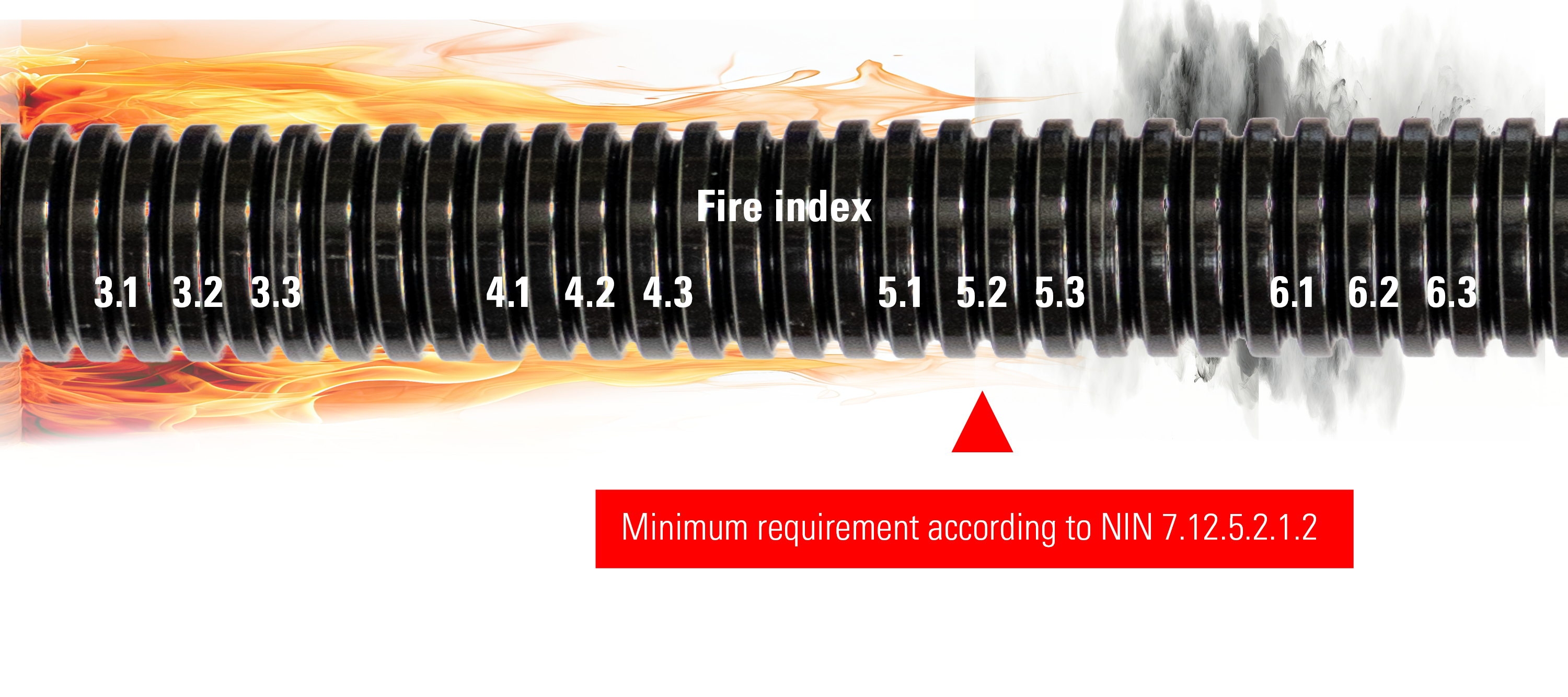

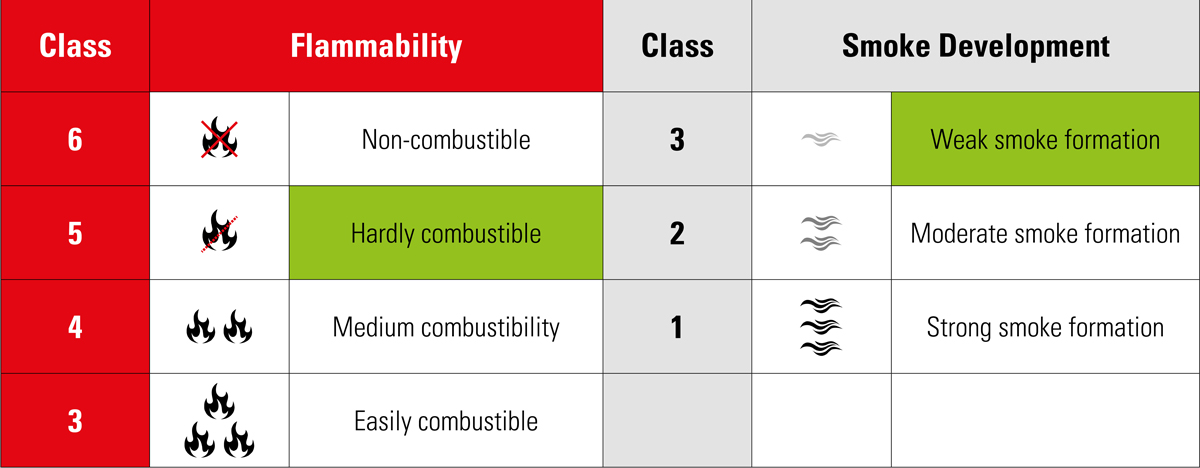

    The fire index 5.3 defines the fire properties of building materials.

    The first number, "5," indicates that the component is flame-retardant.
    The second number, "3," provides information about the smoke development of the material, with 3 as the highest value indicating weak smoke production.

    This classification is crucial for assessing the safety and suitability of materials in fire protection-relevant areas.
    It is noteworthy that plica's Longlife components are unique in the Swiss market, as they meet the strict requirements of the fire index 5.3 of the VKF (Association of Cantonal Fire Insurers) and stringent legal regulations.


    The NIN 7.12.5.2.1.2 standard outlines the requirements for safe electrical installations. Choosing the right products is crucial to comply with legal regulations and ensure safety.

    Important points:

    • Only materials with an appropriate fire index may be used.
    • Materials that are highly flammable and produce heavy smoke are prohibited in certain areas!

    NIN 7.12.5.2.1.2

    The PV direct current main line must be installed in a fixed location, and insulation materials that meet increased insulation requirements (halogen-free insulation materials) must be used. PVC insulation is not suitable for this purpose.
    If the possible short-circuit current does not or only insignificantly exceeds the operating current, no further measures are required for short-circuit protection.

    If such cables pass over combustible building parts (surface mounted) or are installed in combustible building parts (flush mounted), they must be installed in low-flammability (RF2/BKZ 5.2) or non-flammable (RF1/BKZ 6q, BKZ 6) pipes or ducts, or cables with a metallic sheath or a concentric conductor must be used (no PVC insulation)

    THE SOLUTION - CERTIFIED PLICA PLASTIC PIPES











    SELF-EXPLANATORY LABELS FROM PLICA - SIMPLE AND HELPFUL

    Pay attention to this sign – the seal of qualityand safety




    Filter
    Main category
    Category
    3 Products

    NIN 7.12.5.2.1.2 Norm

    Die PV-Gleichstromhauptleitung ist ortsfest zu verlegen und es sind Isolationsmaterialien zu verwenden, welche erhöhte Anforderungen an die Isolation (halogenfreie Isolationsmaterialien) erfüllen.
    PVC-Isolationen sind dazu nicht geeignet. Sofern der mögliche Kurzschlussstrom den Betriebsstrom nicht oder nur unwesentlich übersteigt, sind für den Schutz bei Kurzschlüssen keine weiteren Massnahmen zu treffen.

    Führen solche Leitungen über brennbare Gebäudeteile (AP) oder sind in brennbaren Gebäudeteilen verlegt (UP), sind diese in schwerbrennbare (RF2/BKZ 5.2) oder in nichtbrennbare (RF1/BKZ 6q, BKZ 6) Rohre oder Kanäle zu verlegen, oder es sind Kabel mit einer metallischen Umhüllung oder einem konzentrischen Leiter zu verwenden (keine PVC-Isolation).


    BRANDSCHUTZ BEI PV-INSTALLATIONEN


    DIE LÖSUNG - ZERTIFIZIERTE PLICA KUNSTSTOFFROHRE










    Die plica-Kunststoffrohre wurden vom TÜV geprüft und zertifiziert und erfüllen die Brandkennziffer BKZ 5.3.

    Die Vereinigung Kantonaler Feuerversicherungen (VKF) hat diese Produkte gelistet (Eintrag VKF).

    Diese plica Kunststoffrohre schützen effektiv Personen und Eigentum im Brandfall und sind deshalb besonders für den Einsatz an Photovoltaikanlagen geeignet.
