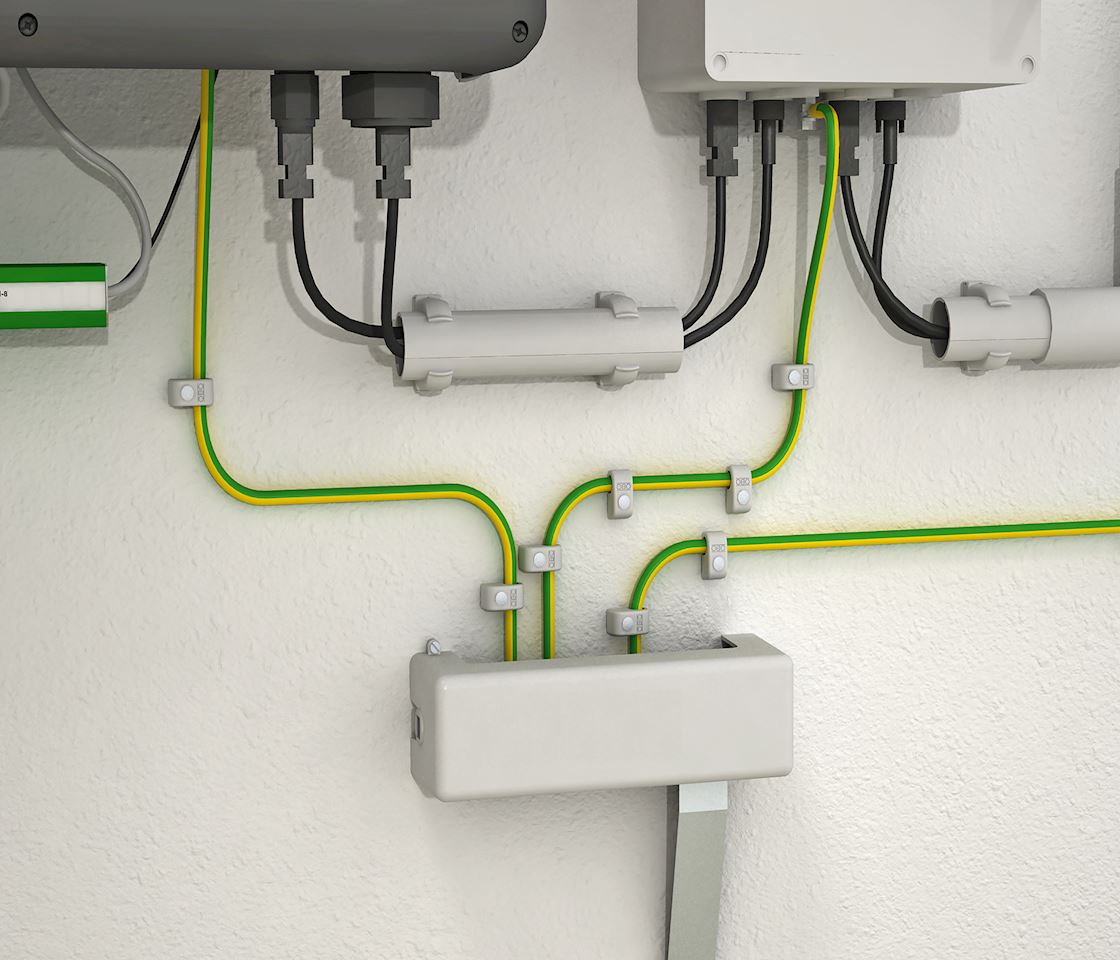

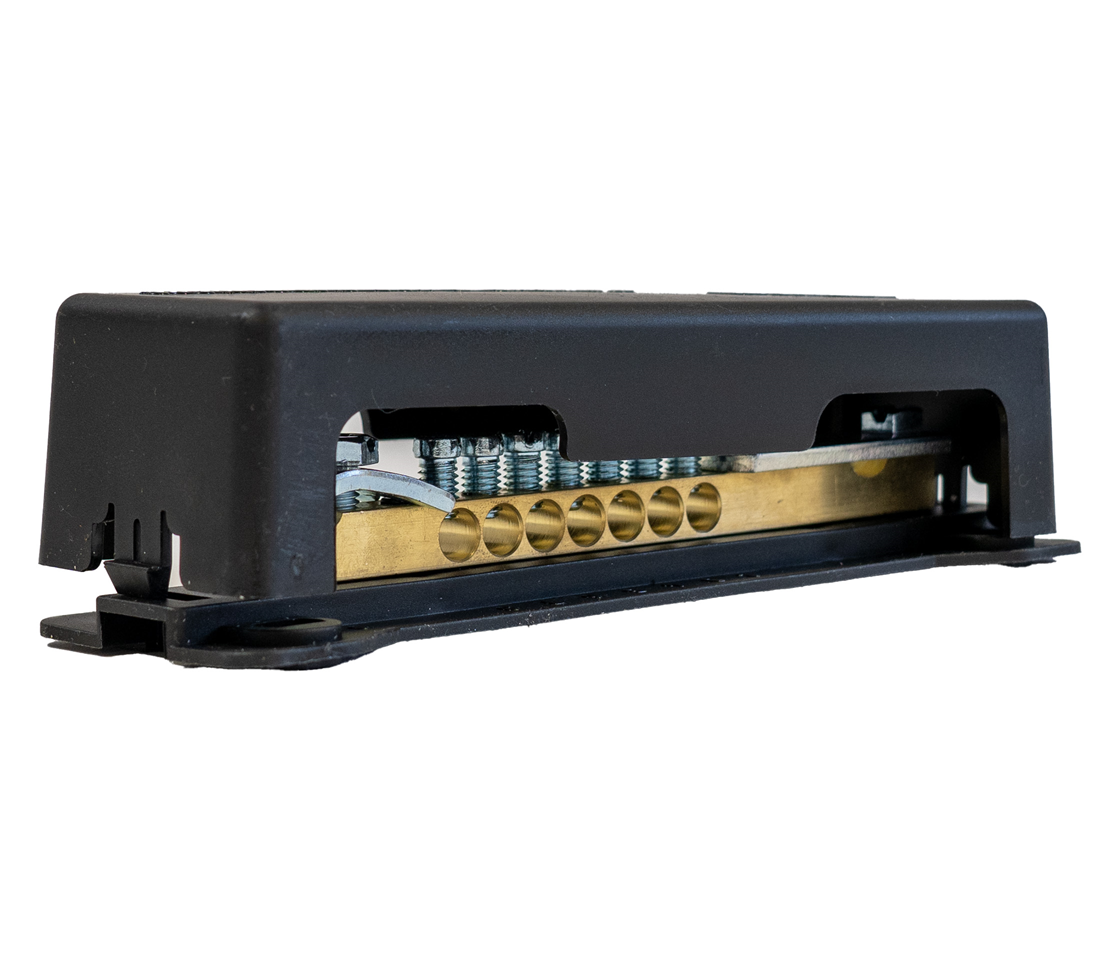

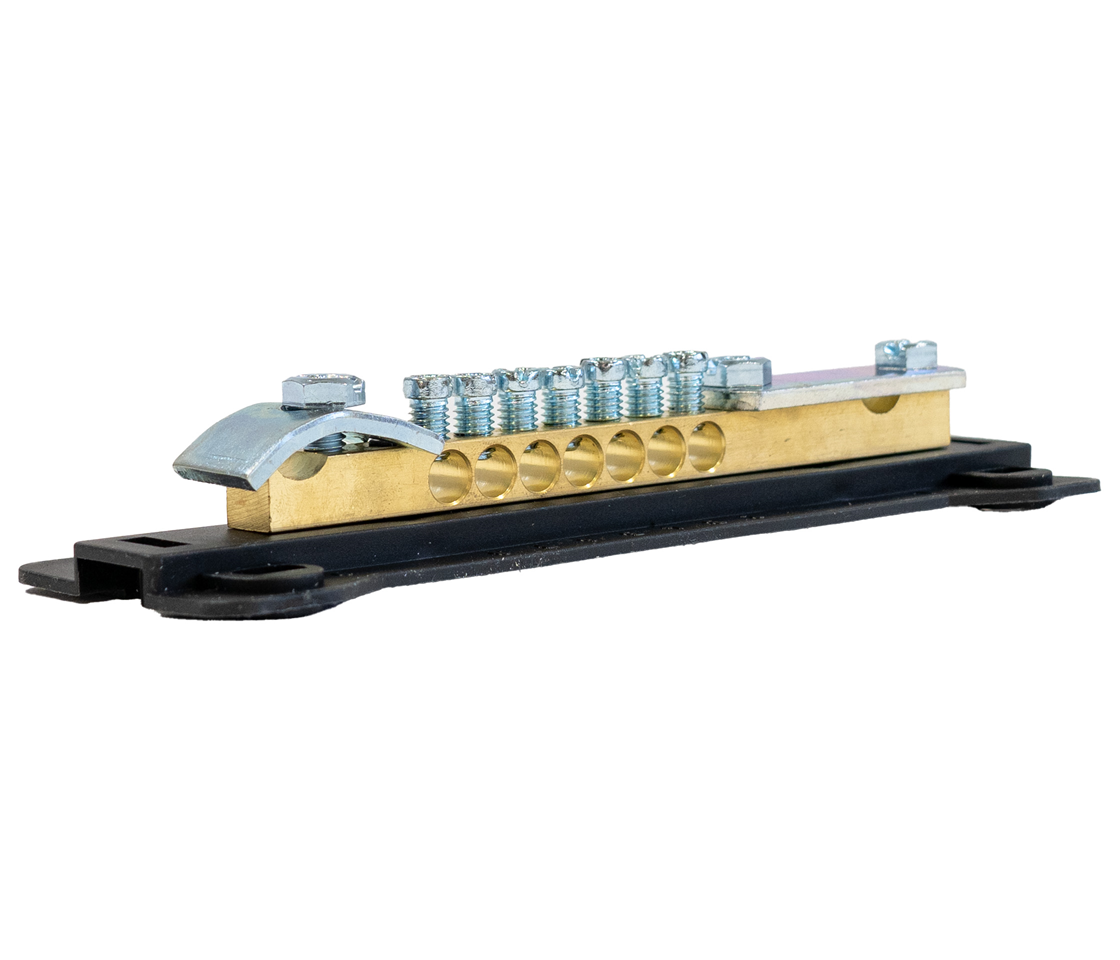

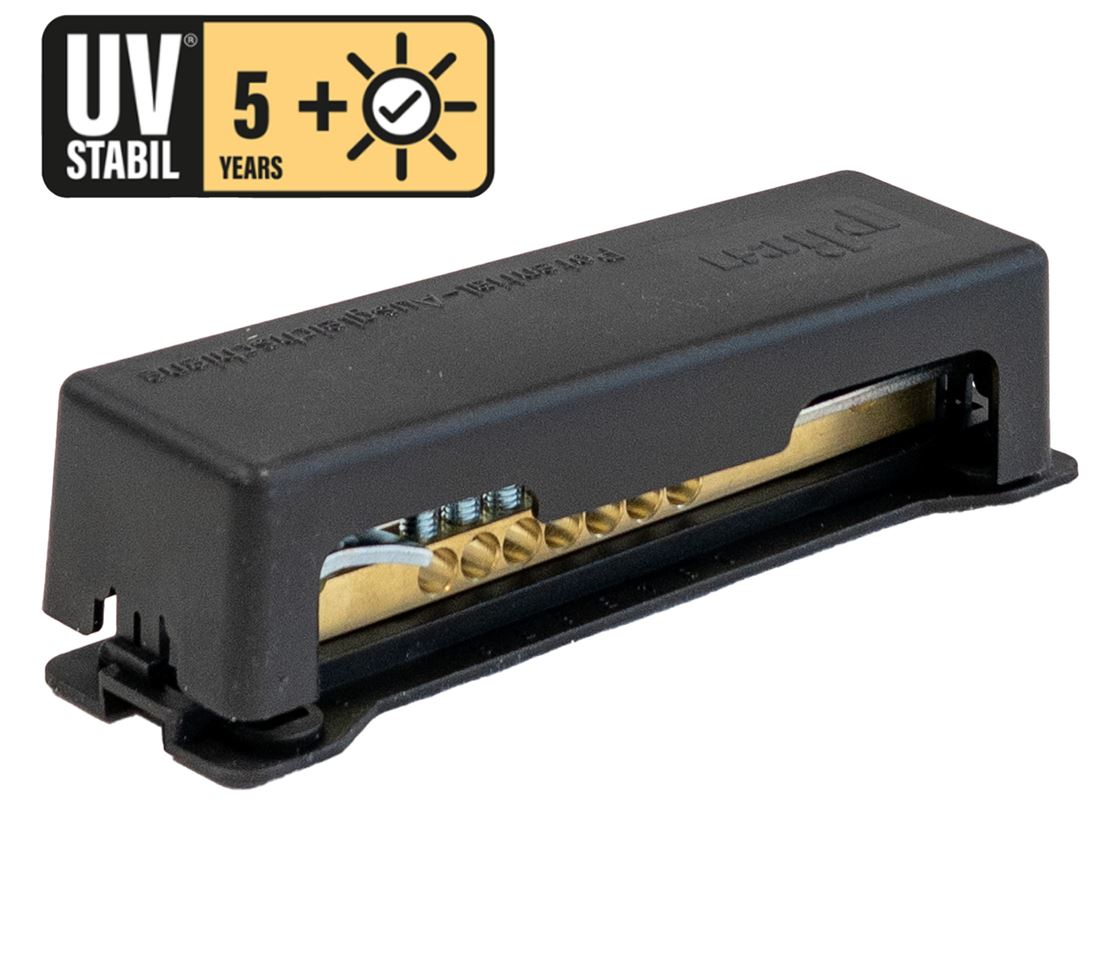

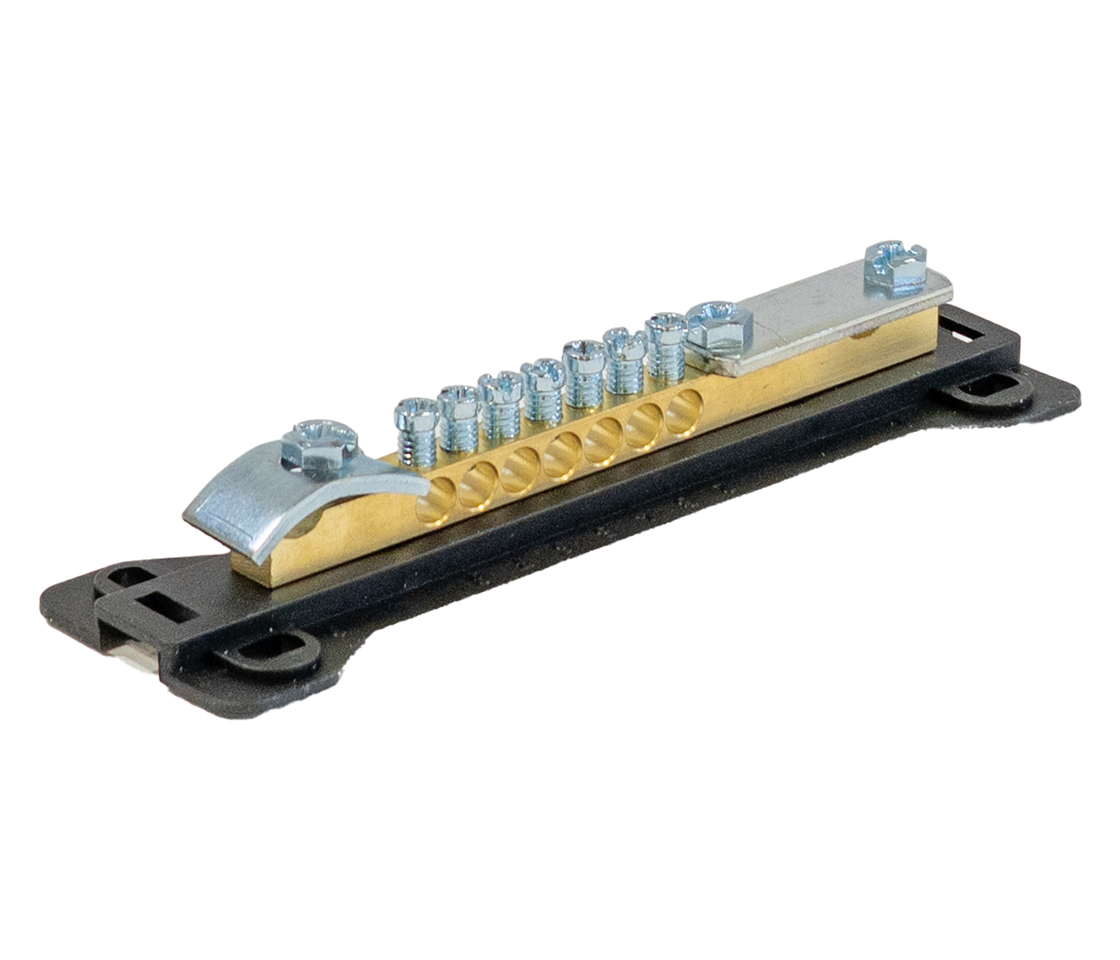

Equipotential bonding bar for outdoor installation
Equipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and
lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood and base plate made of polystyrene
• Colour: Black, UV-resistant
• Screws and crossbar made of VA
• Capable of carrying lightning current 50 kA (10/350)
Construction type
Surface mounting fix
Model
With covering cap
Insulator
Yes
Explosion-tested version
No
Number of connections round conductor total
1
Number of connections round conductor 8-10 mm
1
Number of connections flat conductor 30 mm
1
Number of connections conductor to 6 mm² fixed
0
Number of connections conductor to 25 mm² fixed
7
Material of contact rail
Brass
Surface of the contact rail
Nickel-plated
Material of clamp
Steel
Surface of the clamp
Galvanic/electrolytic zinc plated
1 Artikel
Reset filters
Filter
Item
Height mm
Width mm
Length mm
Availability
SU
Price / SU in CHFexcl. VAT
- Item 135961100Height
mm 44.5Width
mm 52Length
mm 188AvailabilitySU 1 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
