Time-controlled230V,17,5x87x62 Yokis Dimmer Module 1 pc

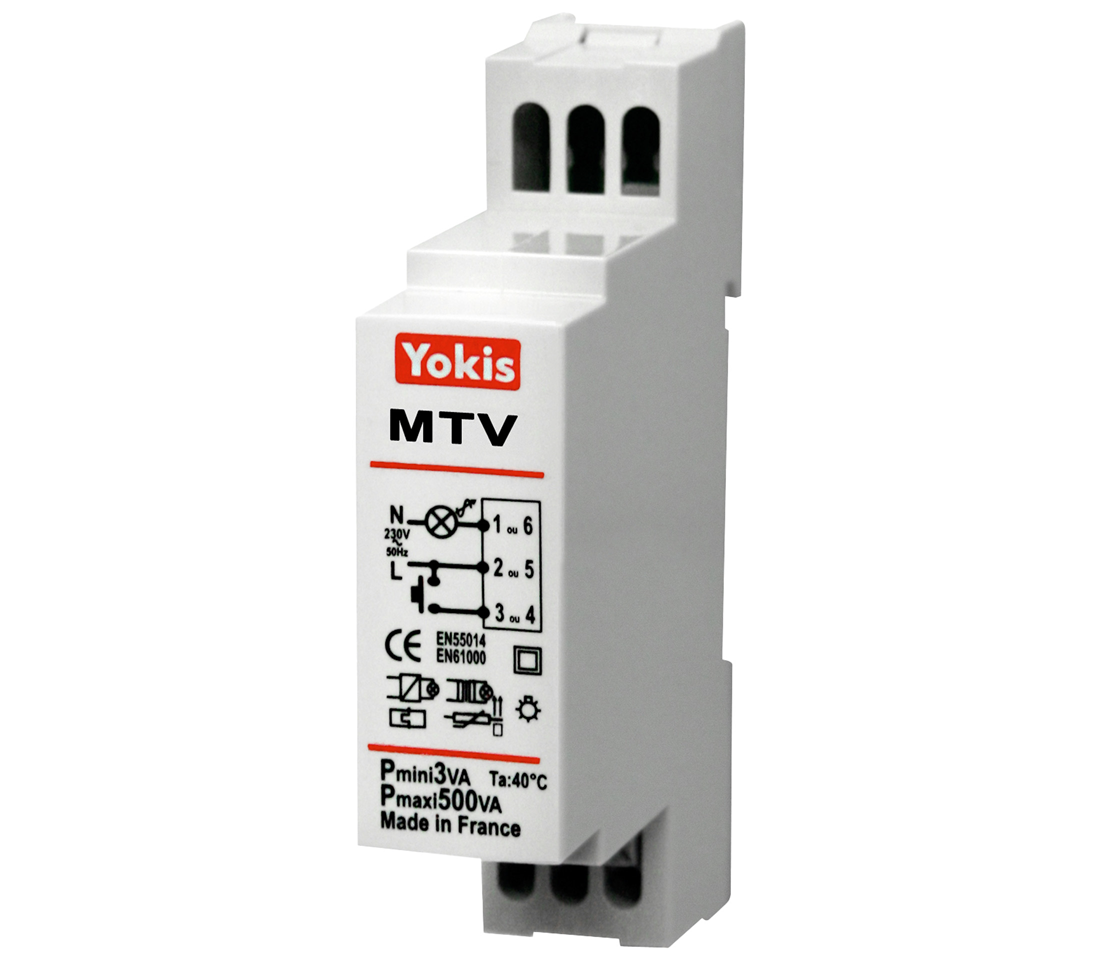

The Urmet MTV500M is a timed 500W dimmer module for DIN rail mounting, enabling smooth dimming without a neutral wire.
Key Features:
Dimming range from 3% to 100% for customized lighting
Memory function for last brightness setting
Adjustable timing from 2 seconds to 4 hours
Nightlight mode with soft orientation light
Centralized control via pilot wire with CVI50
Soft-Start/Soft-Stop to protect lamps
Built-in protection against short circuits and overheating
Waterproof, suitable for indoor and outdoor use
Number of units
1
App control via Bluetooth
No
Dimming phase cut-on
No
Dimming phase cut-off
No
Serial dimmer
Yes
Type of load
Universal and LED Retrofit
Substation input
No
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
Yes
Applicable with time switch/timer
Yes
Applicable with transmission button
No
Applicable with infrared button
No
Min. brightness controllable
No
Mounting method
Module frame
Type of fastening
Other
Material
Plastic
Material quality
Duroplast
Halogen free
Yes
Surface protection
Decor
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP20
Impact strength
IK00
Nominal voltage
195.5...253 V
Frequency
50...50 Hz
Control voltage
0...0 V
Nominal power resistive load
5...500 W
Nominal power inductive load
11...500 VA
Nominal power capacitive load
11...250 VA
Max. switching power LED
11 W
Power consumption
250 W
Connection type
Screwed terminal
Core cross section
1.1...2.5 mm²
Device width
18 mm
Device height
83 mm
Device depth
62 mm
Min. depth of built-in installation box
62 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
