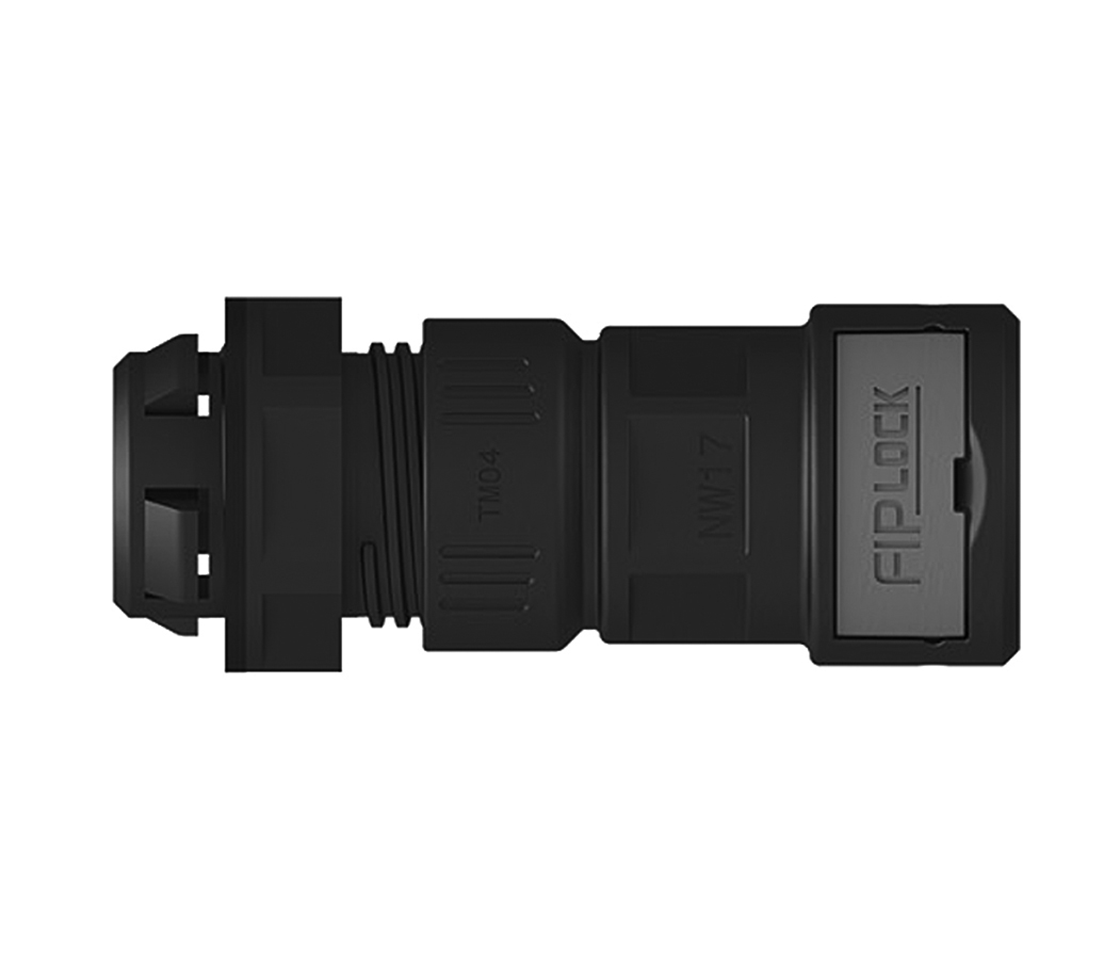

AZPA-C - Fitting strain relief, straight
The one-piece cable protection conduit fitting AZPA-C with integrated cable gland for additional strain relief of wires and conductors, with a click system for metric panel holes where lock-nuts can not be applied from the backside. With the brand new 360° interlocking system and an inside conduit seal, AZPA-C complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AZPA-C
Material
Polyamide (PA)
Thread material
Other
Thread type
Other
Thread
NW
Type of connection
Plug-in connection
Construction type
No thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
16 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 880000628Nominal diameter
mm 24.2Thread connection size OtherLowest inner diameter hose
mm 24.7Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 68.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000629Nominal diameter
mm 24.2Thread connection size OtherLowest inner diameter hose
mm 24.7Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 68.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000630Nominal diameter
mm 24.2Thread connection size OtherLowest inner diameter hose
mm 28.5Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 70.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000631Nominal diameter
mm 24.2Thread connection size OtherLowest inner diameter hose
mm 28.5Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 70.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000632Nominal diameter
mm 29.7Thread connection size OtherLowest inner diameter hose
mm 28.5Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 73.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000633Nominal diameter
mm 29.7Thread connection size OtherLowest inner diameter hose
mm 28.5Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 73.1AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000634Nominal diameter
mm 29.7Thread connection size OtherLowest inner diameter hose
mm 34Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 81.7AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000635Nominal diameter
mm 29.7Thread connection size OtherLowest inner diameter hose
mm 34Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 81.7AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000636Nominal diameter
mm 35.2Thread connection size OtherLowest inner diameter hose
mm 34Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 85.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000637Nominal diameter
mm 35.2Thread connection size OtherLowest inner diameter hose
mm 34Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 85.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000638Nominal diameter
mm 35.2Thread connection size OtherLowest inner diameter hose
mm 41.7Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 85.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000639Nominal diameter
mm 35.2Thread connection size OtherLowest inner diameter hose
mm 41.7Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 85.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000640Nominal diameter
mm 44Thread connection size OtherLowest inner diameter hose
mm 41.7Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 91.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000641Nominal diameter
mm 44Thread connection size OtherLowest inner diameter hose
mm 41.7Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 91.3AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000642Nominal diameter
mm 44Thread connection size OtherLowest inner diameter hose
mm 48.4Max. outer diameter hose
mmColour BlackThread length
mmTotal length
mm 91.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 880000643Nominal diameter
mm 44Thread connection size OtherLowest inner diameter hose
mm 48.4Max. outer diameter hose
mmColour GreyThread length
mmTotal length
mm 91.6AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
