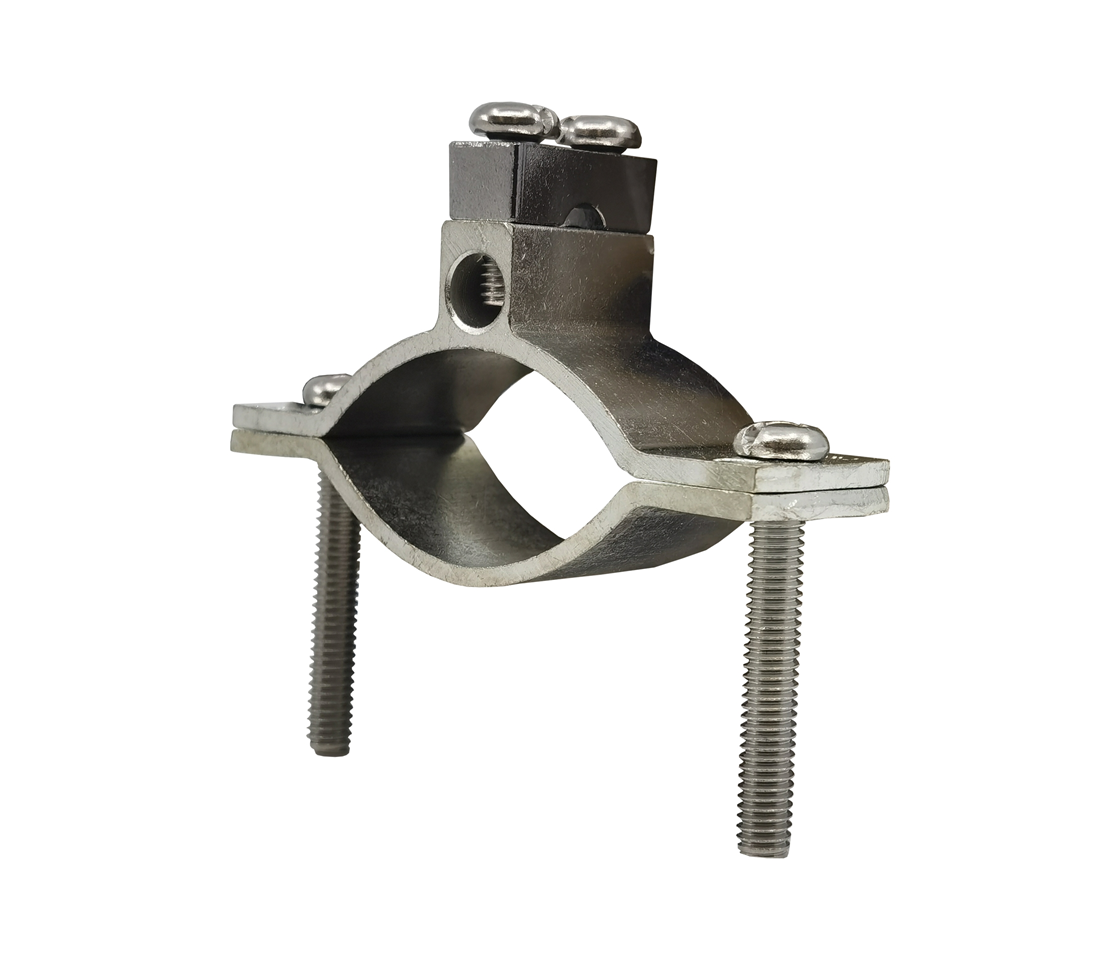

16-50mm2, tinned br. 10pc Earthing clamp G 2 1/2-3" horizontal, SEV proved

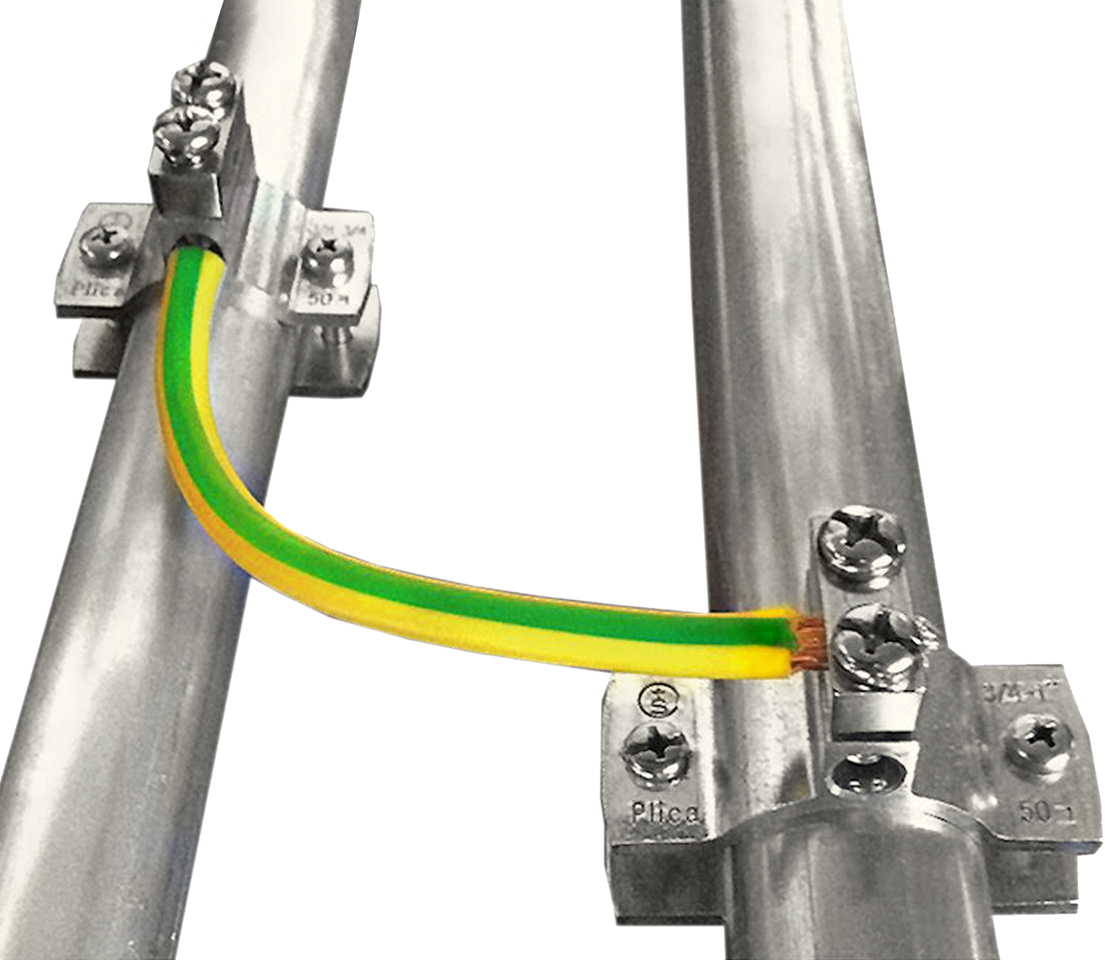

In tinned brass, offers a safe connection on metallic tubing for water and heating applications and connect those with the main potential equalisation. For cables and wires from 16 up to 50mm2 or round wires till 8mm diameter, very low transfer resistance thanks to double contacting. Horizontal or vertical connection.
Material
Brass
Surface protection
Galvanic tinned
series
ELB-G
temperature
-40...+200
1 Artikel
Item
Clamping/chucking range mm
Min. clamping range inch
Max. clamping range inch
Cross section of the connecting conductors mm²
Number of conductors
Availability
SU
Price / SUexcl. VAT
- Item 135961005Clamping/chucking range
mm 75.2 ... 87.9Min. clamping range inch 2 1/2 inchMax. clamping range inch 3 inchCross section of the connecting conductors
mm² 16…50Number of conductors 2AvailabilitySU 10 StkPrice / SU excl. VAT
This item is available in 4 other versions.
