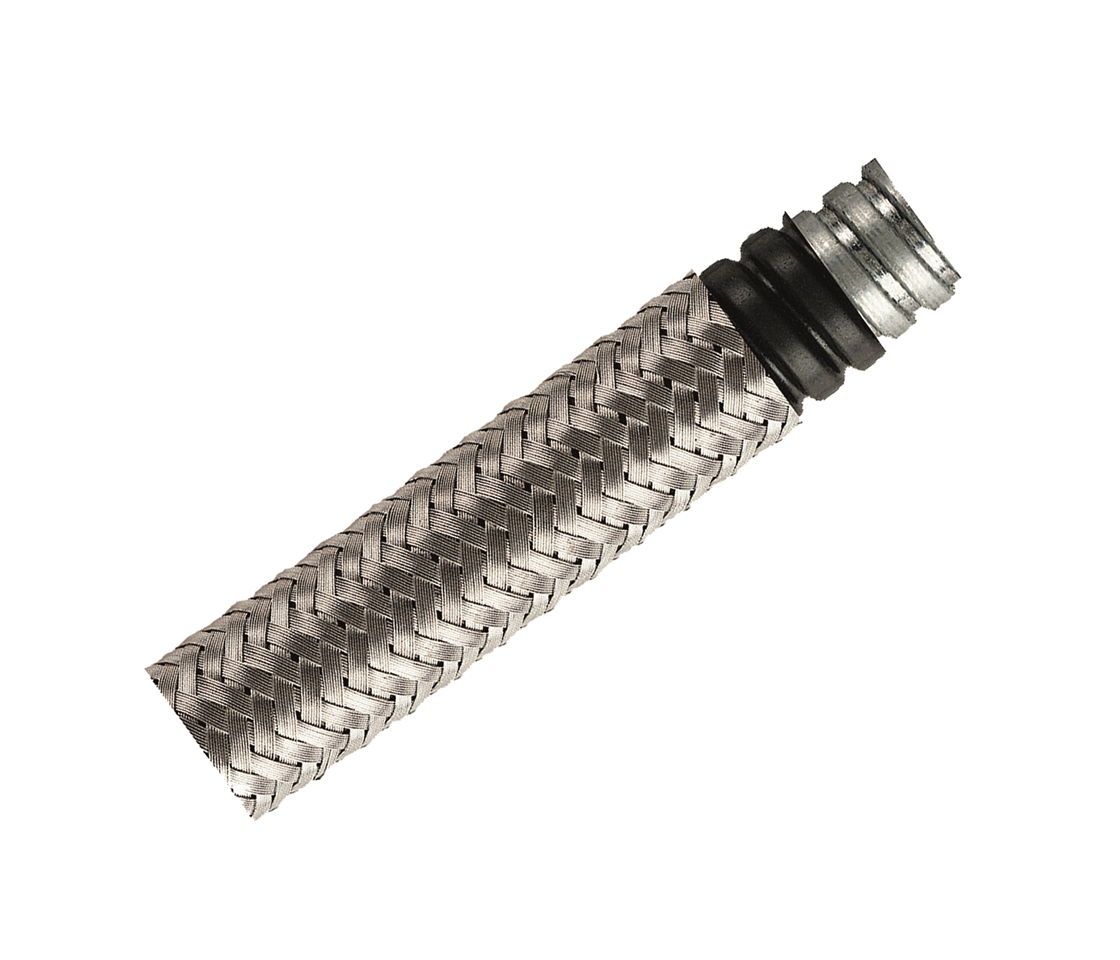

FSB Metal Conduit with High Abrasion Resistance
The FSB Metal Conduit is known for its high mechanical and abrasion resistance, EMC shielding, and antistatic features. Ideal for use in public and commercial buildings, underfloor wiring, and industrial settings. Made of galvanized steel with PVC and steel wire coating. Temperature range: -15 to +70°C, Protection type: IP65, UV resistant. Available in various sizes.
Material
Steel
Surface protection
Galvanized
Sheathing material 1st coating
Polyvinyl chloride (PVC)
Sheathing material 2nd coating (exterior)
Steel wire
Sealing
No sealing
Operating temperature
-15...+70 °C
Degree of protection (IP)
IP65
Flame accelerating
No
Suitable for EX-applications
No
Bending strength
Flexible
Approved according to FI
No
With approval according to UL
No
UV-resistant
Yes
6 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Wall thickness mm
Bending radius, static mm
Colour
Availability
SU
Price / SU in CHFexcl. VAT
- Item 860000097Nominal diameter
mm 12Outer diameter
mm 15.2Inner diameter
mm 10.2Wall thickness
mm 2.5Bending radius, static
mm 30Colour ZincAvailabilitySU 25 mPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000098Nominal diameter
mm 20Outer diameter
mm 22.7Inner diameter
mm 16.9Wall thickness
mm 2.9Bending radius, static
mm 45Colour ZincAvailabilitySU 25 mPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000099Nominal diameter
mm 25Outer diameter
mm 27.2Inner diameter
mm 21.1Wall thickness
mm 3.05Bending radius, static
mm 55Colour ZincAvailabilitySU 25 mPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000100Nominal diameter
mm 32Outer diameter
mm 35.2Inner diameter
mm 28.1Wall thickness
mm 3.55Bending radius, static
mm 70Colour ZincAvailabilitySU 10 mPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000101Nominal diameter
mm 40Outer diameter
mm 45.7Inner diameter
mm 37.6Wall thickness
mm 4.05Bending radius, static
mm 80Colour ZincAvailabilitySU 10 mPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000102Nominal diameter
mm 50Outer diameter
mm 57.7Inner diameter
mm 48.4Wall thickness
mm 4.65Bending radius, static
mm 90Colour ZincAvailabilitySU 10 mPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
