Flat plug-in housing FSG
For flat plug-in sleeves and Flat plug with tab 1.5 – 6.0 mm2. Max. 250 VAC.
Connecting angle
180° (horizontal)
Flange shape
Special shape
Slender flange model
Yes
Insulated
Yes
Colour insulation
Other
With sight-hole
No
Material
Copper
Surface protection
Other
Number of mounting holes
0
series
FSG
Material of the insulation
PA
VAC
Max.250
Isolated
Yes
3 Artikel
Reset filters
Filter
Item
Bolt dimension (metric)
Nominal cross section mm²
Length A
Width B
total length
length 2
length 3
width
height
Weight

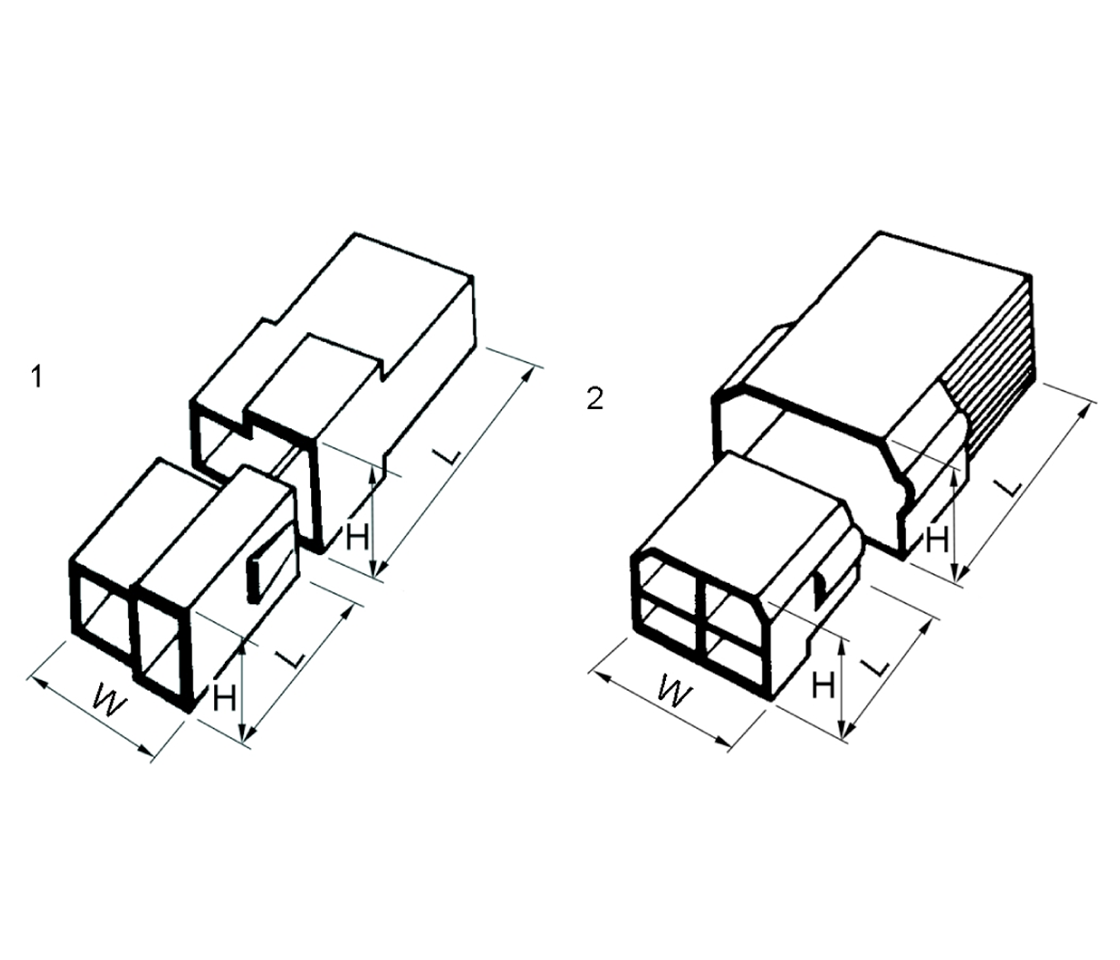

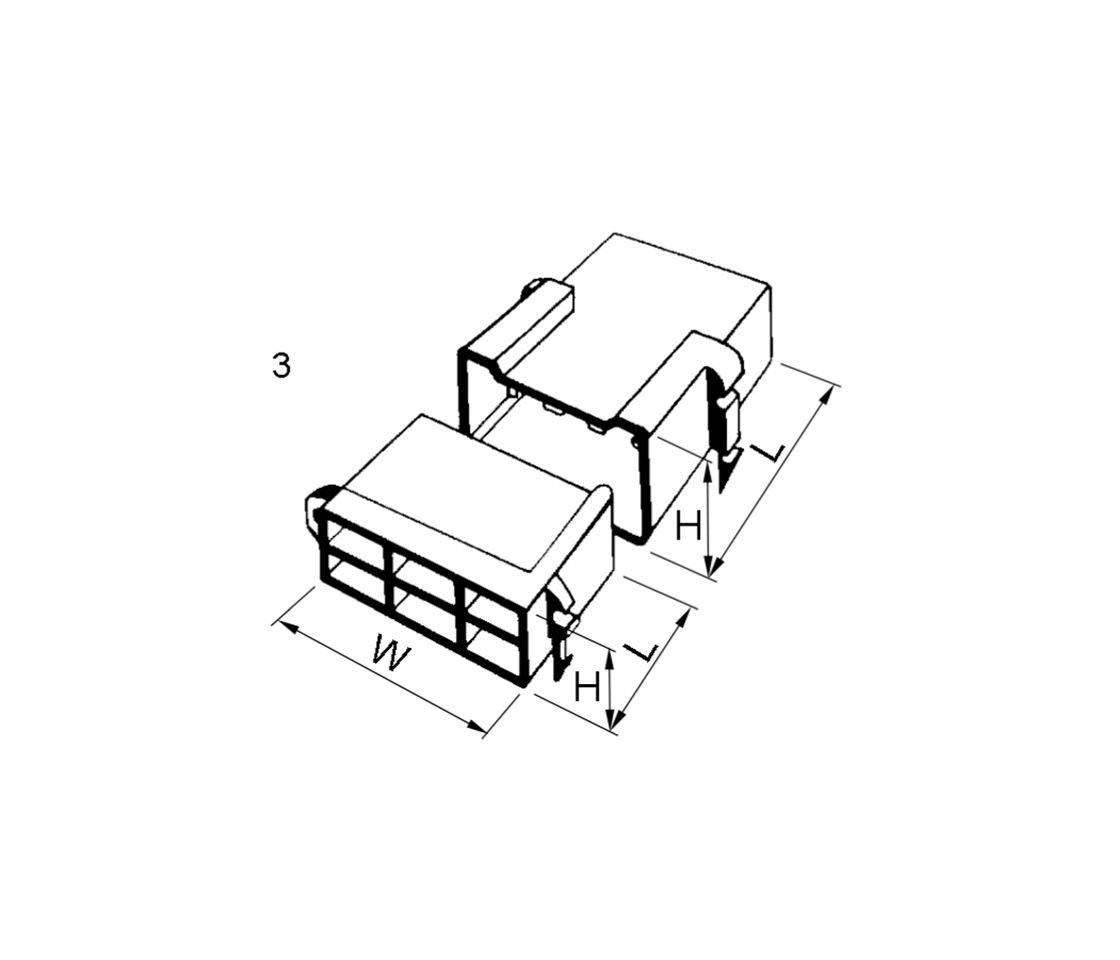

Type
number of poles
colour
Availability
SU
Price / SUexcl. VAT
- Item 614800500Bolt dimension (metric)Nominal cross section
mm²Length AWidth Btotal length 33length 2length 3width 23height 17.4WeightType 2number of poles 4colourAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614800530Bolt dimension (metric)Nominal cross section
mm²Length AWidth Btotal length 33length 2length 3width 31height 18.7WeightType 3number of poles 6colourAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614800550Bolt dimension (metric)Nominal cross section
mm²Length AWidth Btotal length 33length 2length 3width 40height 18.6WeightTypenumber of poles 8colourAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
