Passage gate MULTIGATE MB-5

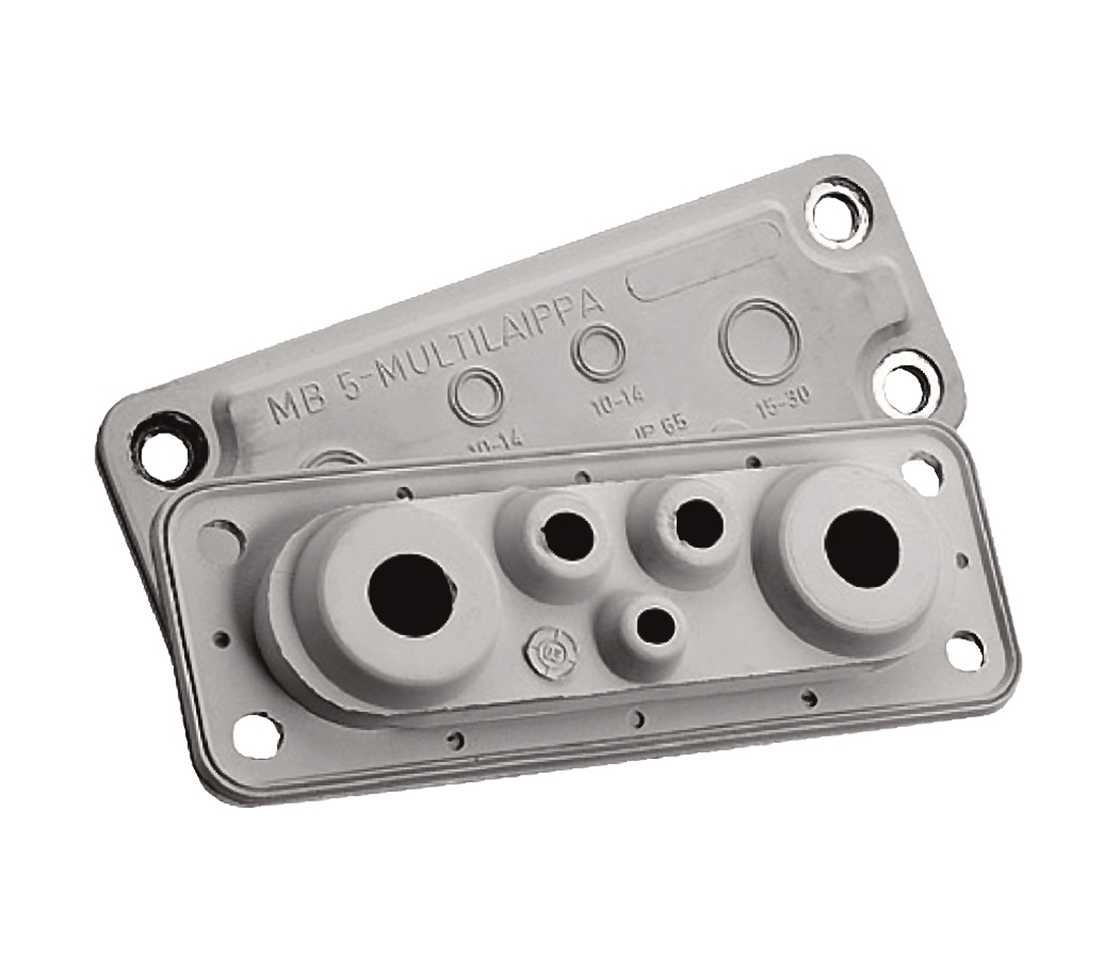

Discover the MULTIGATE MB-5 cable entry plate by PLICA, suitable for routing cables and hoses in electrical cabinets, plant construction, and machine building. The construction is based on a metal plate with an EPDM coating. The MULTIGATE MB-5 is also available in other colors upon request. It offers various opening sizes for cables and hoses: 24-54 mm (2 pieces), 30-60 mm (1 piece), 8-12 mm (4 pieces). Four expansion rivets are also included in the delivery. This cable entry plate is an efficient and reliable solution for your cable management needs, ideal for use in various industrial applications.
Type
Straight
Material
Plastic
Pre-stamping
Yes
series
MB-5 (hg)
temperature range
-40…+120
IP protection
IP 54 / IP 65
1 Artikel
Reset filters
Filter
Item
Width mm
Height mm
diameter
colour
hole spacing width
Hole spacing width mm
number opening
length
Availability
SU
Price / SUexcl. VAT
- Item 970005003Width
mm 48Height
mm 20diametercolour Lichtgrauhole spacing width 34Hole spacing width
mm 113.67number opening 5length 138AvailabilitySU 1 SetPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
