Cable gland plate MULTIGATE MH-24

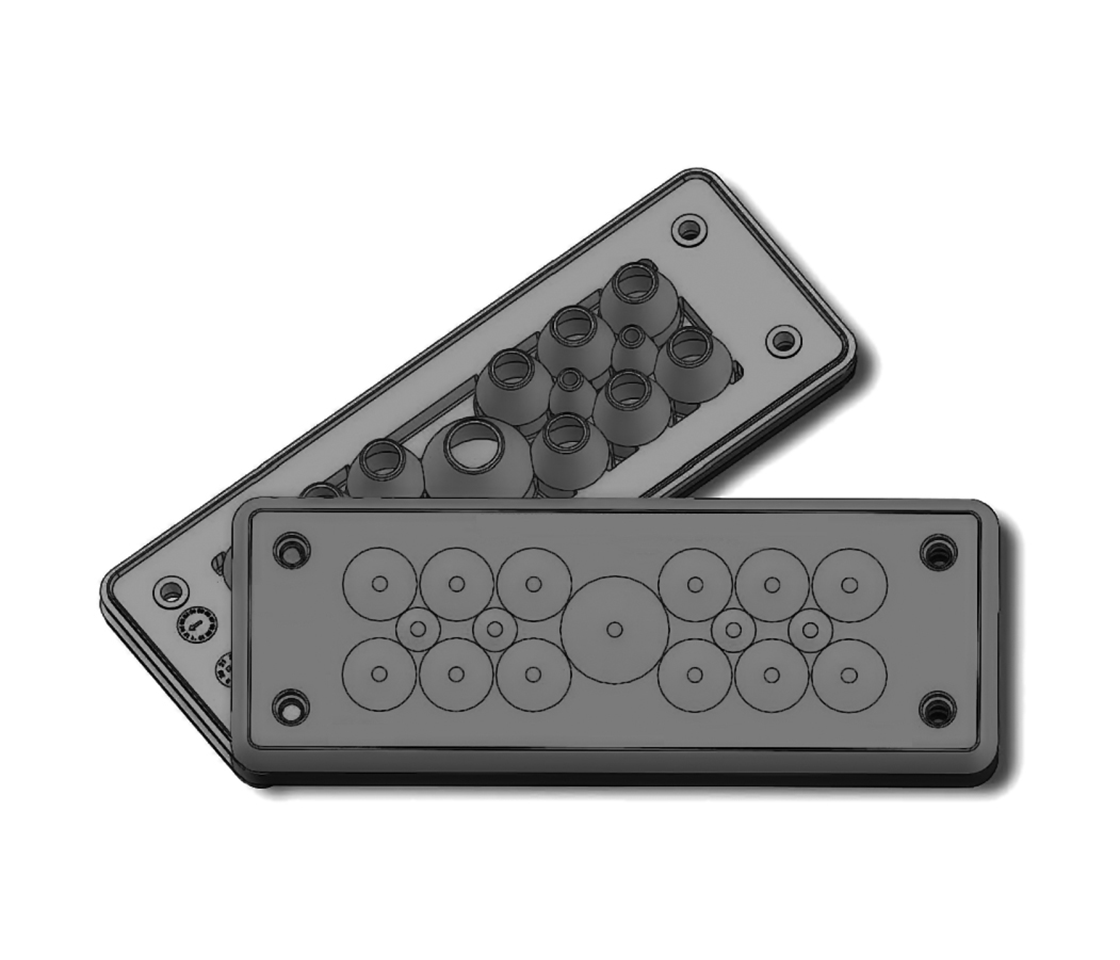

The cable gland platte Multigate MH-24 F 30.1 can be used for the installation of non-prefabricated cables. Thanks to its high packing density, the MH-24 can accommodate a maximum of 17 cables with different diameters. The cable gland plate with the dimensions 154 x 56 x 19 mm meets the IP65 protection rating. Also suitable in other colors on demand. 3-7 mm => 4 piece, 7-20 mm => 12 piece, 10-20 mm => 1 piece. Incl. 4 ?xation rivets.
Model
Closed
Suitable for cable gland
Yes
Cable entry
Long-slot
With strain relief
No
Shrink technique
No
Angle model
No
Material
Plastic
Material quality
Other
Surface protection
Untreated
Halogen free
Yes
Colour
Grey
Gastight
Yes
Fire resistant
Yes
Watertight
Yes
Degree of protection (IP)
IP66
Operating temperature
-40…+90 °C
series
CABLE-ENTRY-PLATE-MH24-F17-3
neck
B24
1 Artikel
Reset filters
Filter
Item
Bore diameter mm
Suitable for cable diameter mm
Number of cables
Thread size (metric)
Thread size PG
length mm
broad
Availability
SU
Price / SUexcl. VAT
- Item 970024001Bore diameter
mmSuitable for cable diameter
mm 3…20Number of cables 0…17Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
