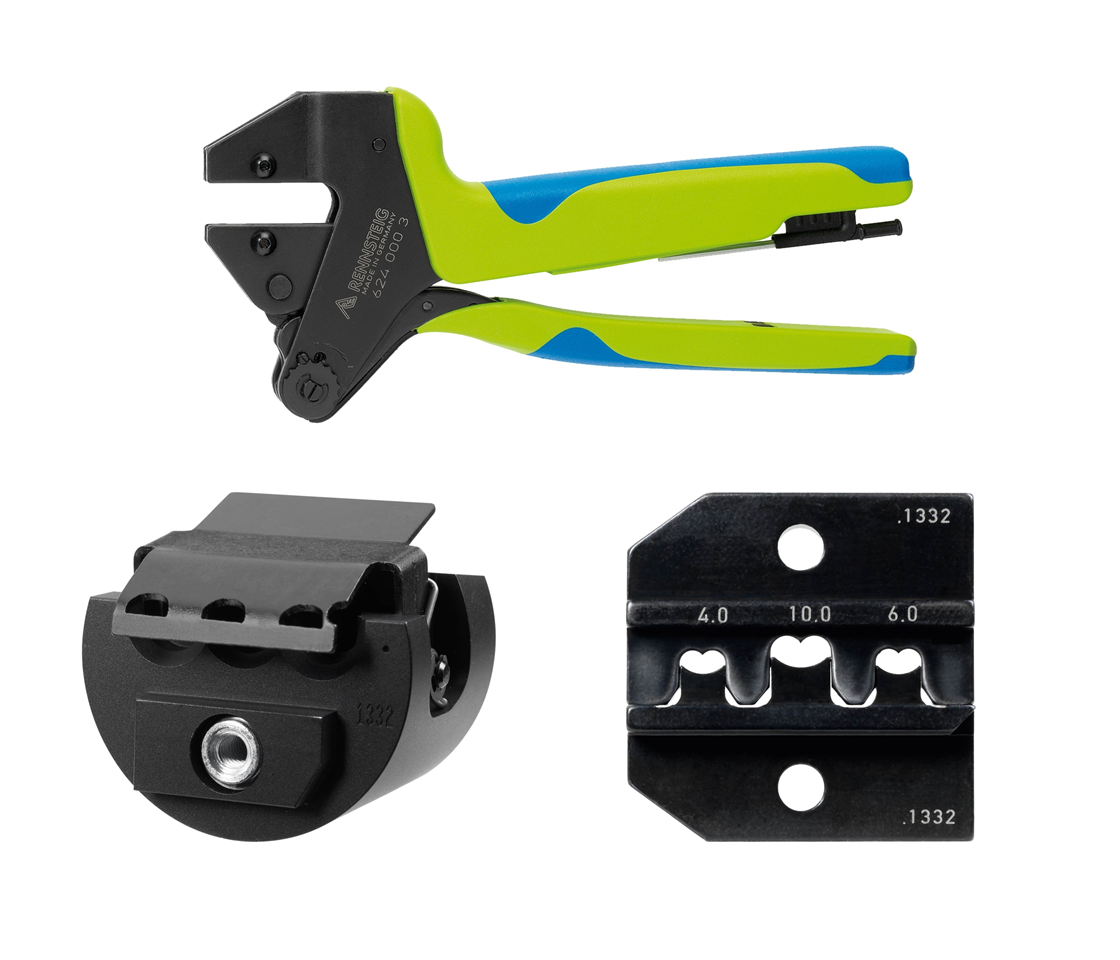

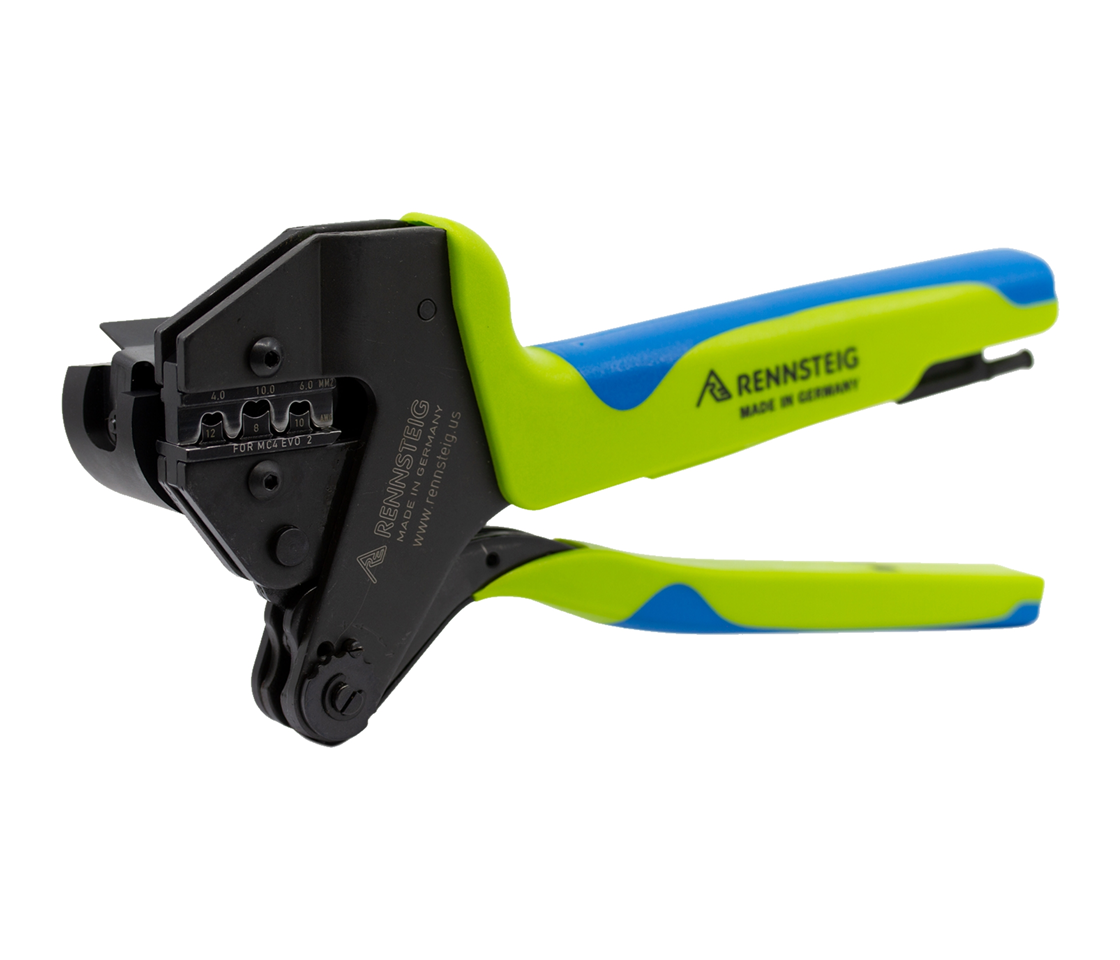

625 51332 3 1 Crimping tool for MC4-EVO 2 PEW12.51332

This crimp tool is recommended for the crimping of MC4-EVO 2 contacts. The excellent handling, easy exchange of the crimping insert bits, and the possibility of adding a positioning aid are facts in favor of these crimping pliers.

• Ergonomic 2-component handle
• Parallel jaws for uniform pressings
• High precision ratchet mechanism for complete crimping
• 1.2 tons of pressure on the crimping surface with minimum effort
• Interchangeable crimp die set with high precision
• Interchangeable locator for precise positioning of terminals
• For male and female contacts
• Made in Germany

Application range: AWG 12/10/8 | 4 / 6 / 10 mm2

With locking device (for mechanical tools)

Yes

Construction/operation

Mechanical

Inserts exchangeable

Yes

Number of included inserts

1
