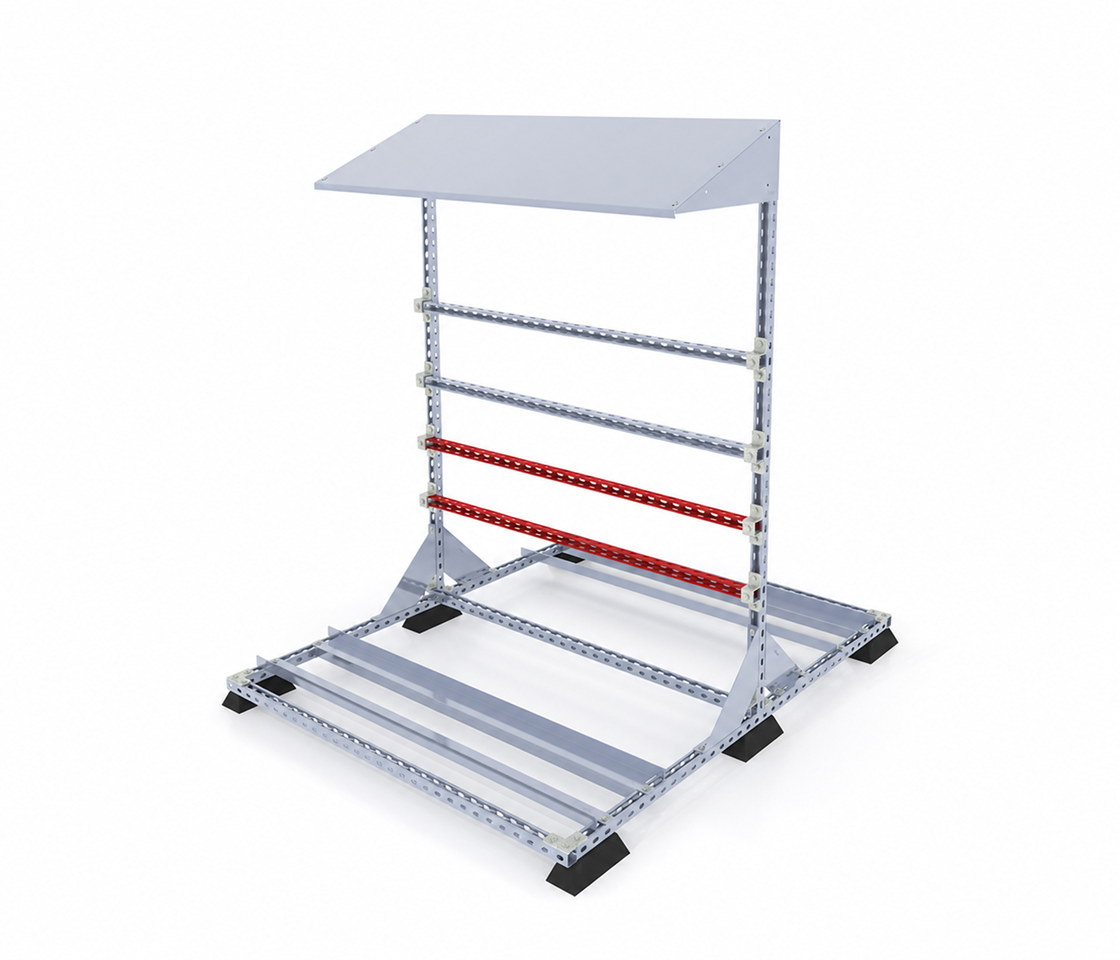

Support profile set for PV Shelter 1500

The support profile set for PV Shelter 1500 is a matching accessory for expanding the Shelter system. It creates an additional mounting level and provides more flexibility when extra devices or PV components need to be mounted neatly and securely.

The set includes a 1.5 m rail with matching mounting accessories. It contains a support profile for Shelter 1500 with H = 41 mm and W = 41 mm, a connector for Shelter 1500, an M8 hexagon screw with 13 mm spanner size and 20 mm length, an M8 sliding nut, and an M8 washer. The connector, hexagon screw, sliding nut, and washer are hot dip galvanised.

Application:
For expanding the PV Shelter 1500 when additional devices need to be installed below the inverter or on an extra mounting level. The set supports an organised layout and helps to better consider mounting distances, accessibility, and air circulation in PV installations.
