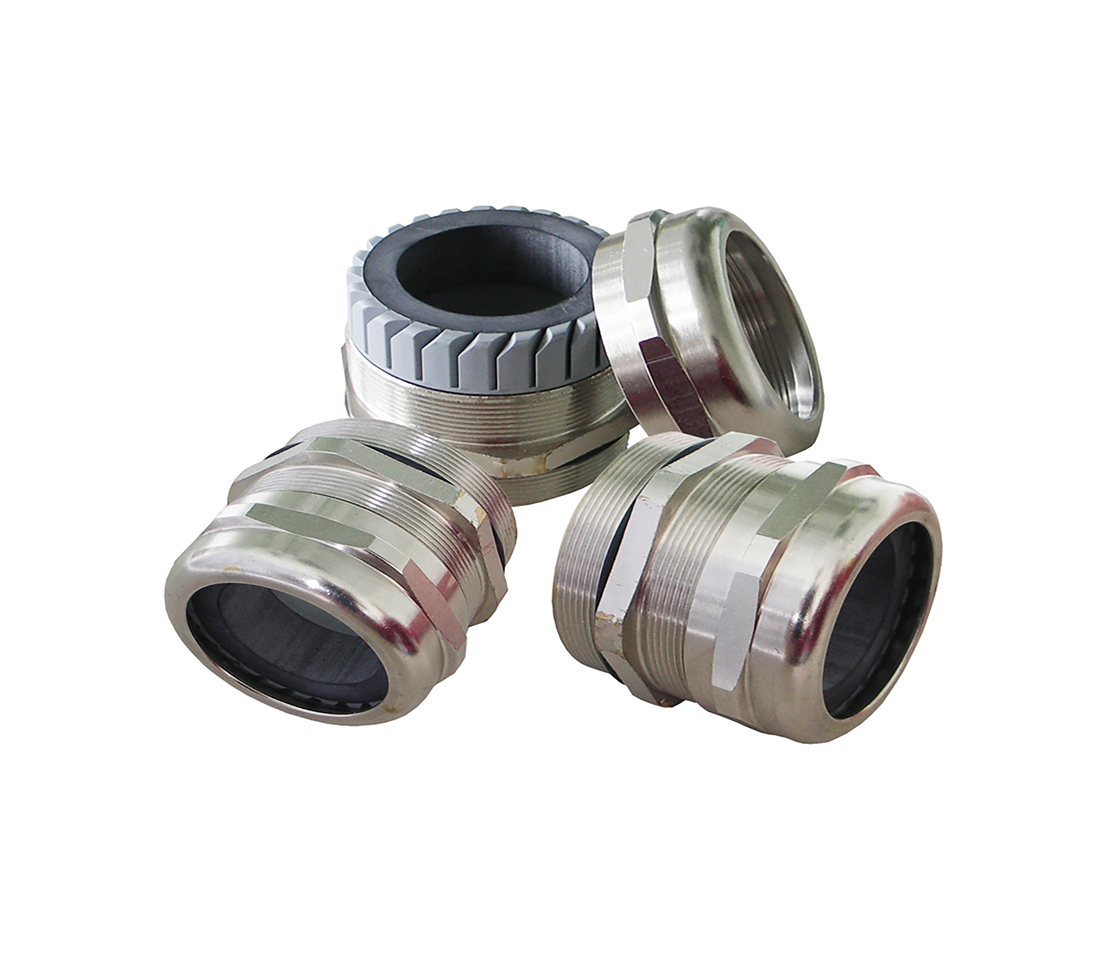

PLICA-TEC MS (M), short thread lead-free
Pitch thread
1.5 mm
Wrench width
14 mm
Colour
Brass
Material
Metal
Material quality
Brass
Surface protection
Nickel-plated
Glass-fibre reinforced
No
Shock resistant
Yes
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
No
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
No
Operating temperature
-40…+100 °C
Degree of protection (IP)
IP68
Halogen free
No
UV-resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
EMC-version
No
interior hot melt adhesive
No
sealing ring material
EDPFM
16 Artikel
Reset filters
Filter
Item
Thread type
Thread length mm
number opening
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SU in CHFexcl. VAT
- Item 924291508Thread type M12Thread length
mm 5number openingSuitable for cable diameter
mm 2.5...6.5RAL-numberAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291509Thread type M16Thread length
mm 5number openingSuitable for cable diameter
mm 4.0...9.5RAL-numberAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291510Thread type M20Thread length
mm 6number openingSuitable for cable diameter
mm 7...13RAL-numberAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291511Thread type M25Thread length
mm 7number openingSuitable for cable diameter
mm 8...16RAL-numberAvailabilitySU 25 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291512Thread type M32Thread length
mm 8number openingSuitable for cable diameter
mm 11...21RAL-numberAvailabilitySU 20 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291513Thread type M40Thread length
mm 8number openingSuitable for cable diameter
mm 15...27RAL-numberAvailabilitySU 10 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291514Thread type M50Thread length
mm 9number openingSuitable for cable diameter
mm 22...35RAL-numberAvailabilitySU 5 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291515Thread type M63Thread length
mm 10number openingSuitable for cable diameter
mm 35...48RAL-numberAvailabilitySU 5 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291516Thread type M12Thread length
mm 5number openingSuitable for cable diameter
mm 1.5...5RAL-numberAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291517Thread type M16Thread length
mm 5number openingSuitable for cable diameter
mm 2.5...7RAL-numberAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291518Thread type M20Thread length
mm 6number openingSuitable for cable diameter
mm 4...10RAL-numberAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291519Thread type M25Thread length
mm 7number openingSuitable for cable diameter
mm 5...13RAL-numberAvailabilitySU 25 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291520Thread type M32Thread length
mm 8number openingSuitable for cable diameter
mm 7...17RAL-numberAvailabilitySU 20 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291521Thread type M40Thread length
mm 8number openingSuitable for cable diameter
mm 10...22RAL-numberAvailabilitySU 10 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291522Thread type M50Thread length
mm 9number openingSuitable for cable diameter
mm 17...29RAL-numberAvailabilitySU 5 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 924291523Thread type M63Thread length
mm 10number openingSuitable for cable diameter
mm 28...40RAL-numberAvailabilitySU 5 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
Were you unable to find what you were looking for? We will gladly try and get the product you are looking for for you.
To the procurement serviceAccessories
