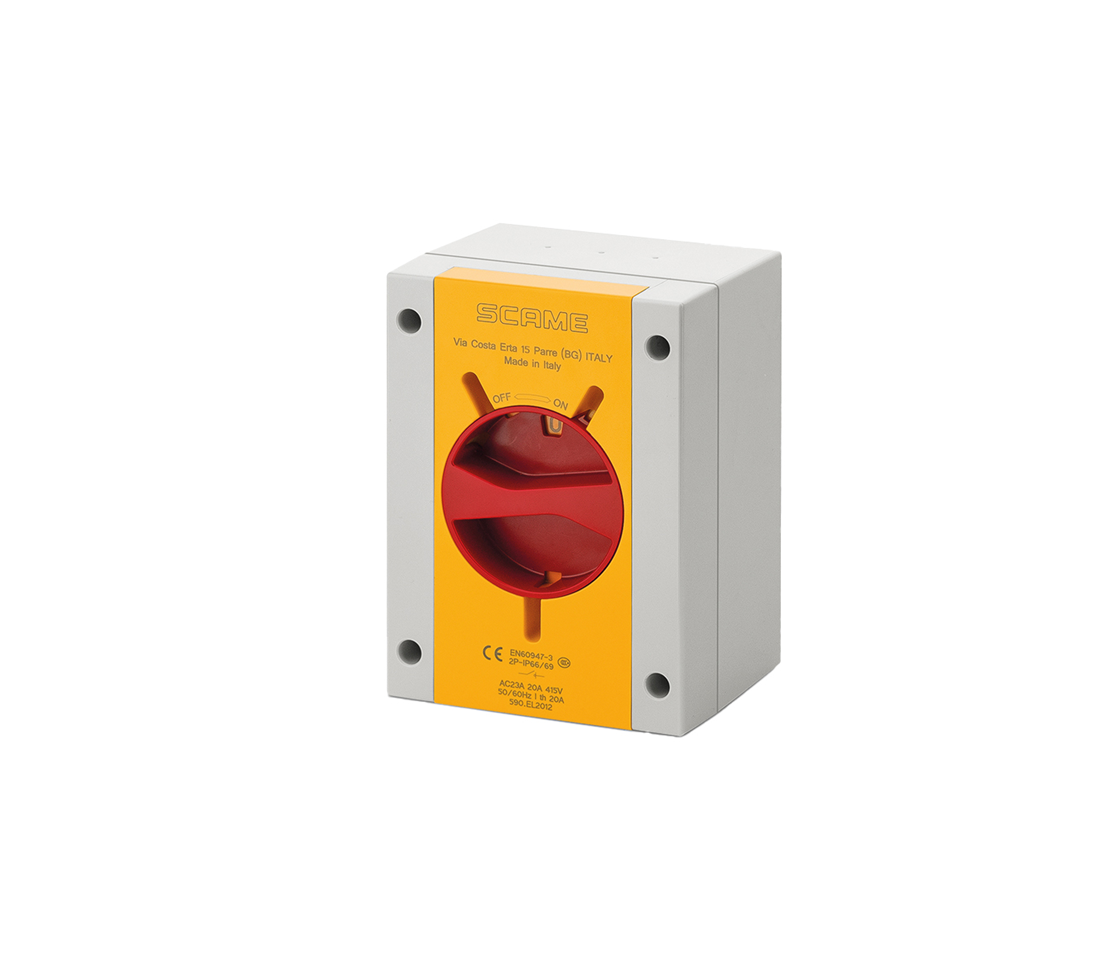

Thermoplastic emergency switch-disconnectors – SCAME TP EM

The SWITCH DISCONNECTOR ISOLATORS-TP Series is designed for emergency applications, featuring a durable construction of engineering plastic. It includes a handle of yellow/red for enhanced visibility. This device supports a rated current of 20...63 A. It is engineered with a high protection degree of IP66/IP69 and an impact resistance of IK09, ensuring resilience in demanding environments. The switch disconnector is configured with 2P poles and a Y1 switch size, operating at a rated voltage of 690V. Key features include a surface mounting version, a door interlock, a padlockable handle in the OFF position for up to three padlocks, a reversible base, and break-through cable entries on the bottom side base.

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

Yes

Version as emergency stop installation

Yes

Version as reversing switch

Max. rated operation voltage Ue AC

690 V

Rated permanent current at AC-21, 400 V

20 A

Rated short-time withstand current lcw

0 kA

Rated operation power at AC-23, 400 V

9 kW

Switching power at 400 V

9 kW

Conditioned rated short-circuit current Iq

10 kA

Colour control element

Red

Type of control element

Turn button

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

IP protection

IP 66 / 69

series

590.EM2012
