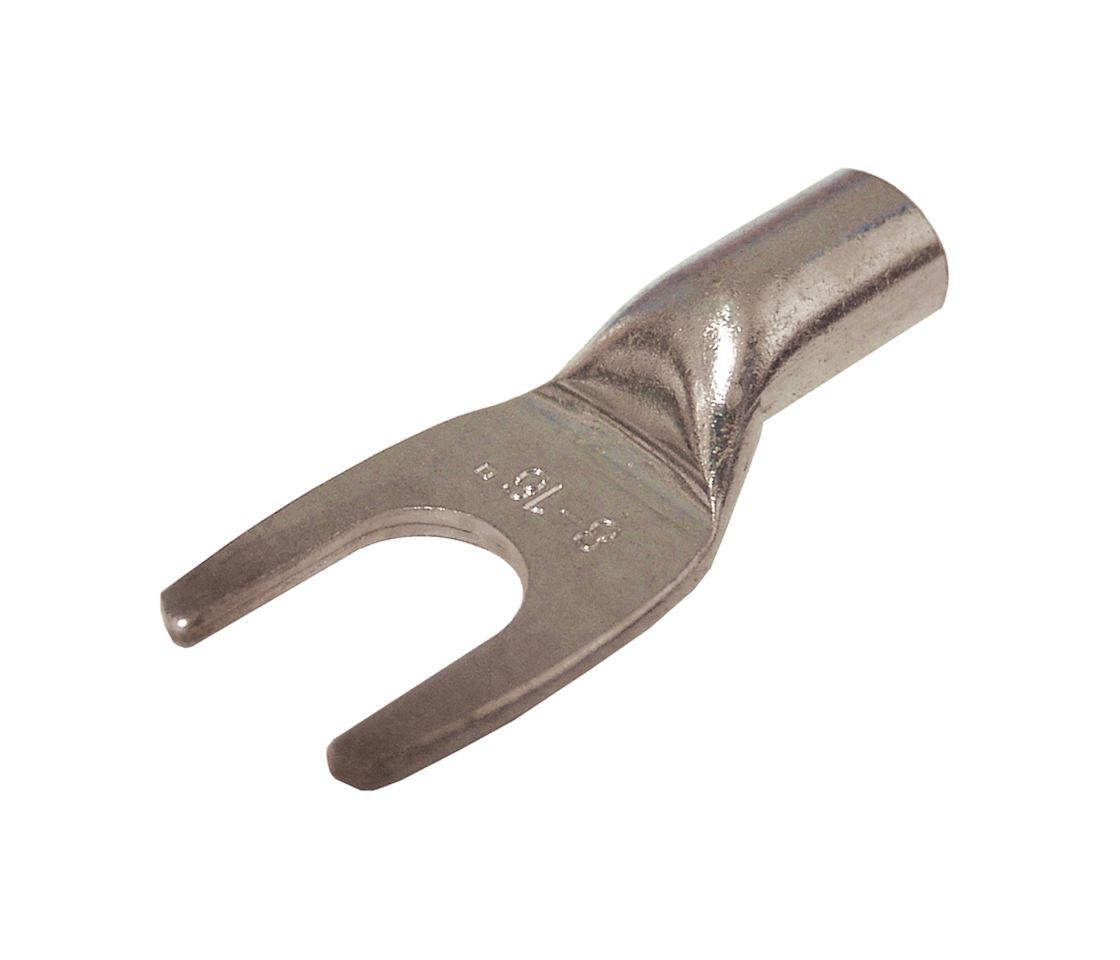

Pipe cable lug, fork shape RKS GF STANDARD

Material Cu-ETP (0.5 – 6 mm2) or Cu-HCP (as of 10 m m2) according to DIN EN 13600.
Connecting angle
45°
Flange shape
Fork shape
Slender flange model
Yes
Insulated
No
Colour insulation
Other
With sight-hole
No
Material
Copper
Surface protection
Tinned
Number of mounting holes
0
series
RKS-STANDARD
Isolated
No

4 Artikel
Reset filters
Filter
Item
Bolt dimension (metric)
Nominal cross section mm²
Length A
Width B
total length
length 2
length 3
width
height
Weight
Type
number of poles
colour
Availability
SU
Price / SUexcl. VAT
- Item 614110021Bolt dimension (metric) 6Nominal cross section
mm² 10Length A 22.5Width B 15total length 22.5length 2length 3width 15heightWeight 0.42Typenumber of polescolour KupferAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614110022Bolt dimension (metric) 8Nominal cross section
mm² 10Length A 25Width B 12total length 25length 2length 3width 12heightWeight 0.46Typenumber of polescolour KupferAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614110024Bolt dimension (metric) 6Nominal cross section
mm² 16Length A 24.5Width B 15total length 24.5length 2length 3width 15heightWeight 0.56Typenumber of polescolour KupferAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614110025Bolt dimension (metric) 8Nominal cross section
mm² 16Length A 26.5Width B 14total length 26.5length 2length 3width 14heightWeight 0.62Typenumber of polescolour KupferAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
