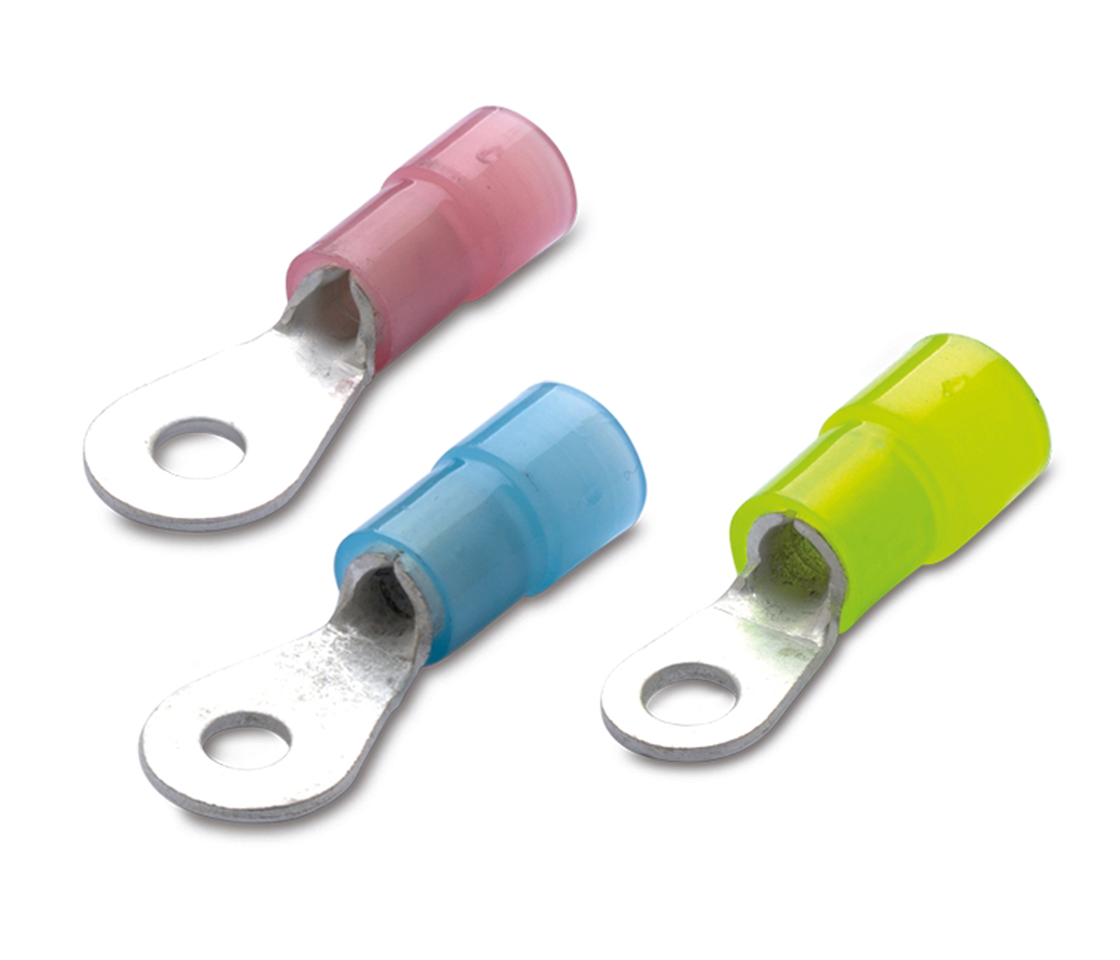

Halogen-free insulated ring terminals
High-quality copper lugs with durable nylon insulation and ring terminal. Designed for maximum safety and reliable electrical connections, they offer resistance to mechanical stress. Perfect for applications requiring long-lasting and robust solutions.
Flange shape
Ring shape
According to DIN
Nein
Insulation
Polyamide (PA)
Reel/roll packaging
Nein
Sleeve form
Long
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
Nein
Suitable for insulated varnish
Yes
Suitable for round conductors
Yes
Suitable for flat conductors
Yes
For pull protected connections
Nein
Material
Copper
Surface protection
Tinned
series
11TB03A
6 Artikel
Reset filters
Filter
Item
Bolt dimension (metric)
Colour insulation
Nominal cross section mm²
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
- Item 463000324Bolt dimension (metric) 5Colour insulation BlueNominal cross section
mm² 1.5...2.5Total length
mm 23.6AvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 463000325Bolt dimension (metric) 4Colour insulation YellowNominal cross section
mm² 4...6Total length
mm 26.5AvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 463000326Bolt dimension (metric) 5Colour insulation YellowNominal cross section
mm² 4...6Total length
mm 27.5AvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 463000327Bolt dimension (metric) 6Colour insulation YellowNominal cross section
mm² 4...6Total length
mm 30.6AvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 463000328Bolt dimension (metric) 8Colour insulation YellowNominal cross section
mm² 4...6Total length
mm 37AvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 463000329Bolt dimension (metric) 10Colour insulation YellowNominal cross section
mm² 4...6Total length
mm 40AvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
