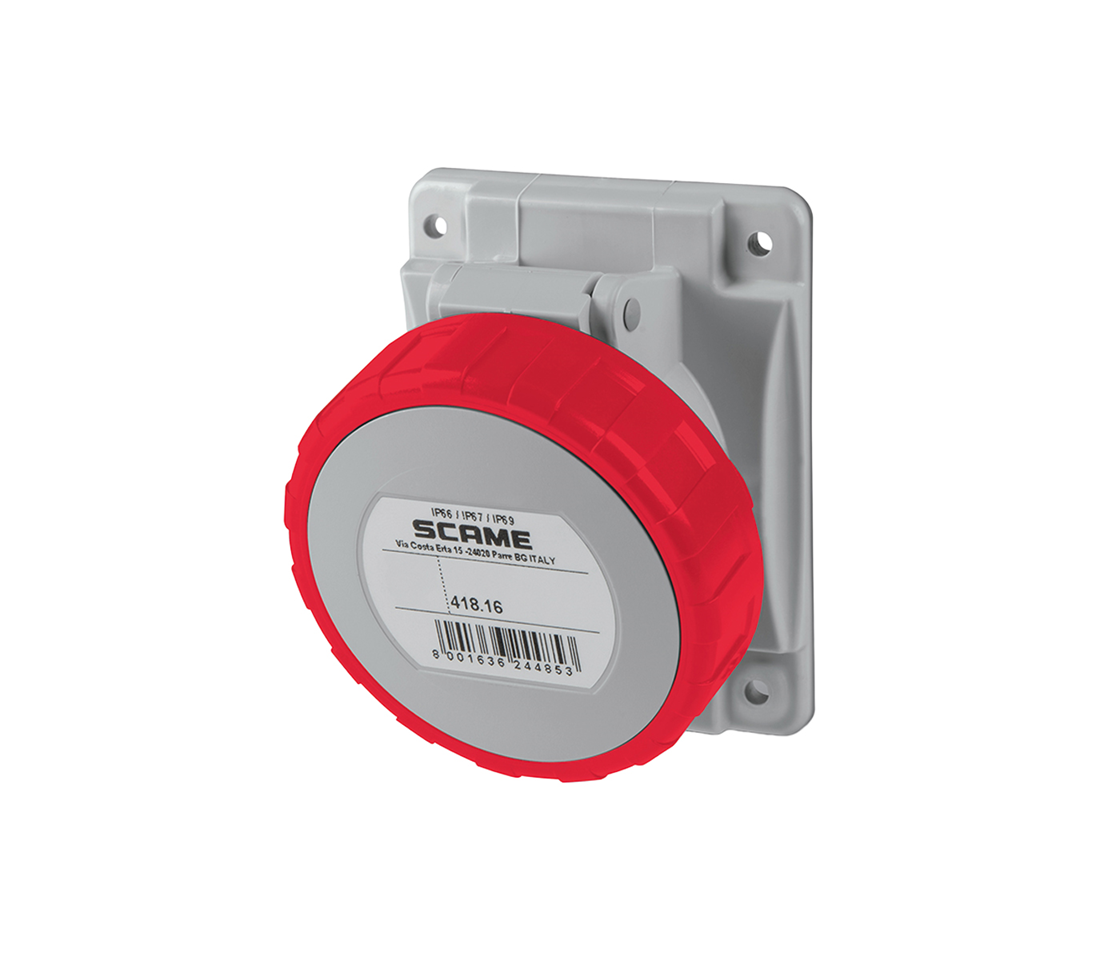

Angled CEE panel-mounted socket 16 A, IP66|67|69, with spring terminals

The Angled CEE panel-mounted socket 16 A, IP66|67|69, with spring terminals from the SCAME OPTIMA series provides a secure and space-saving power connection on machinery, enclosures and distribution equipment. Its angled insertion direction reduces the clearance required in front of the mounting surface and supports neat cable routing.

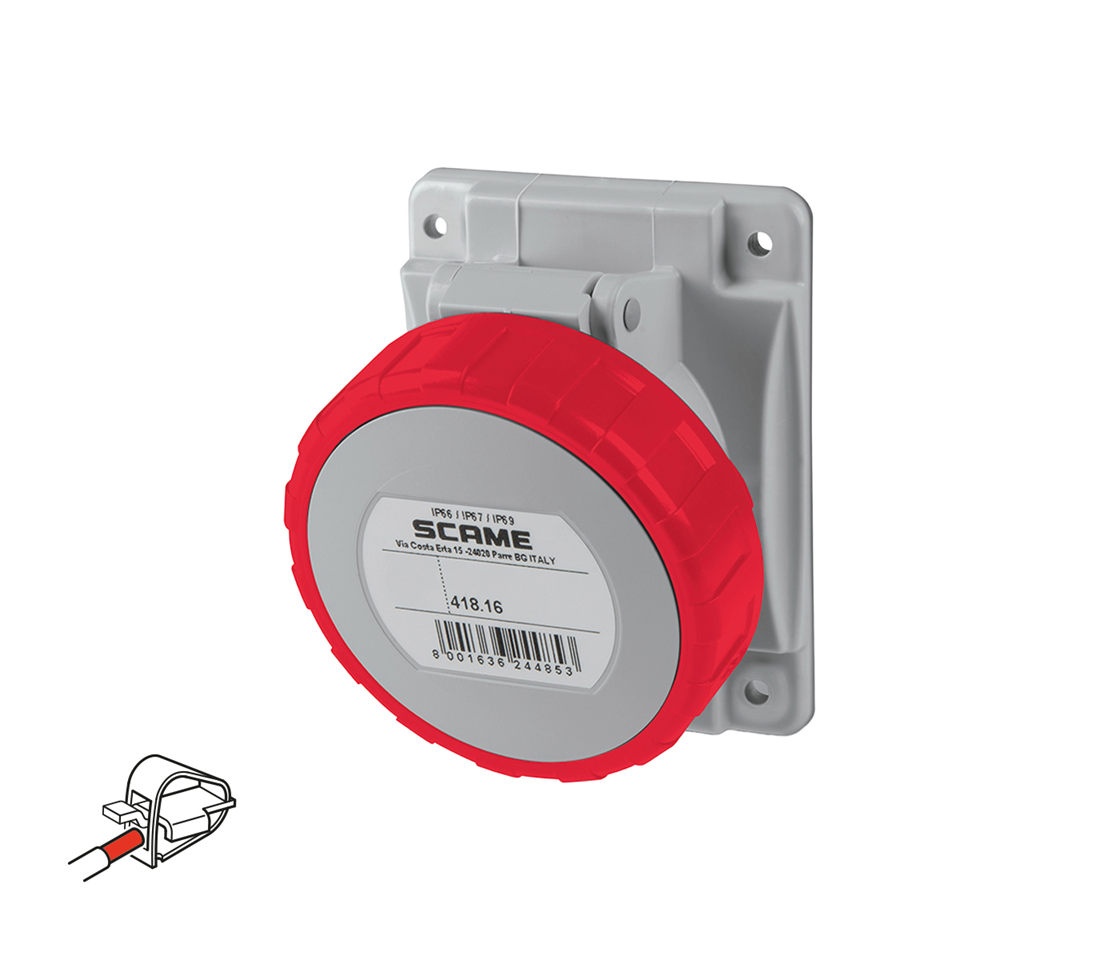

The spring terminals provide fast, screwless and low-maintenance wiring. The robust thermoplastic housing and brass contacts provide a reliable and durable installation.

Application: For fixed installation on machinery, control cabinets, enclosures and mobile or stationary power distribution equipment.

Number of poles

RAL-number

7.035

Degree of protection (IP)

IP67

Connection system

Screw less terminal

Insert direction

Angled

Material

Plastic

Contact material

CuZn

Military model

Flange size vertical

87 mm

Flange size horizontal

70 mm

Angled CEE panel-mounted socket 16 A, IP66|67|69, with spring terminals
