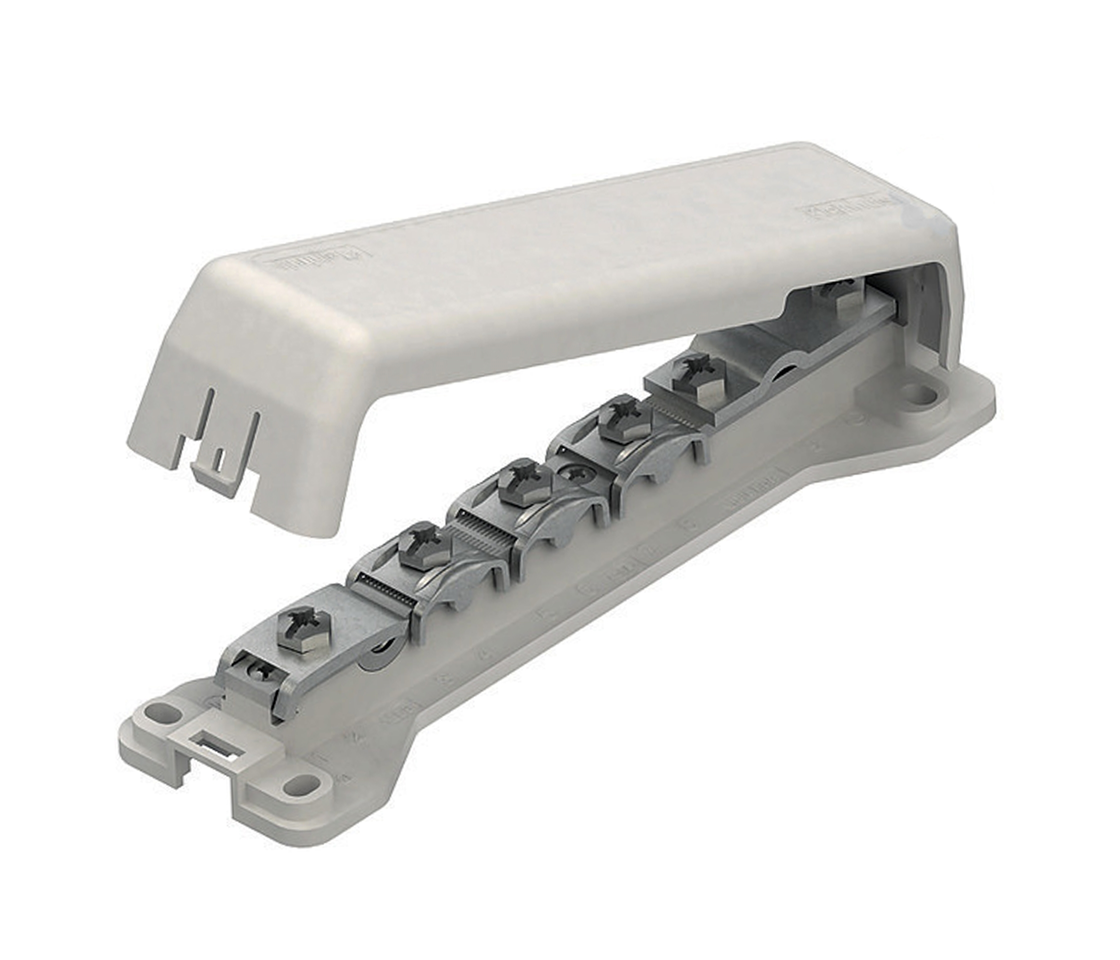

Outdoor area Equipotential bonding bar RAL 7035

Potential equalisation bar, according to VDE 0618-1 with sealable hinged cover, halogen-free. Dimensions (approx. dimensions) H x W x L : 43 x 51 x 187.5 mm Connection possibilities : 1 x 2.5 mm² - 6 mm² 6 x 2.5 mm² - 25 mm² 1 steel strip up to 30 x 4 mm and/or 1 round conductor Ø 8 mm - Ø 10 mm 1 x 50 mm² Material housing : PP (polypropylene) Material clamping rail : copper, nickel-plated Material clamping elements : steel, galvanised Colour : light grey RAL : 7035 (similar).

Construction type

Surface mounting fix

Model

With covering cap

Insulator

Yes

Explosion-tested version

Number of connections round conductor total

Number of connections round conductor 8-10 mm

Number of connections flat conductor 30 mm

Number of connections conductor to 6 mm² fixed

Number of connections conductor to 25 mm² fixed

Material of contact rail

Copper

Surface of the contact rail

Other

Material of clamp

Copper

Surface of the clamp

Galvanic/electrolytic zinc plated

1 Artikel

Item

Height mm

Width mm

Length mm

Availability

Price / SU in CHF excl. VAT

Item 135961103

Height
mm

Width
mm

Length
mm

Availability

SU 1 Stk

Price / SU in CHF excl. VAT

CHF

10.80

/ 1 pcs

CHF

10.80

/ 1 pcs

Add item to the shopping cart
